Manifold Absolute Pressure Sensor Replacement

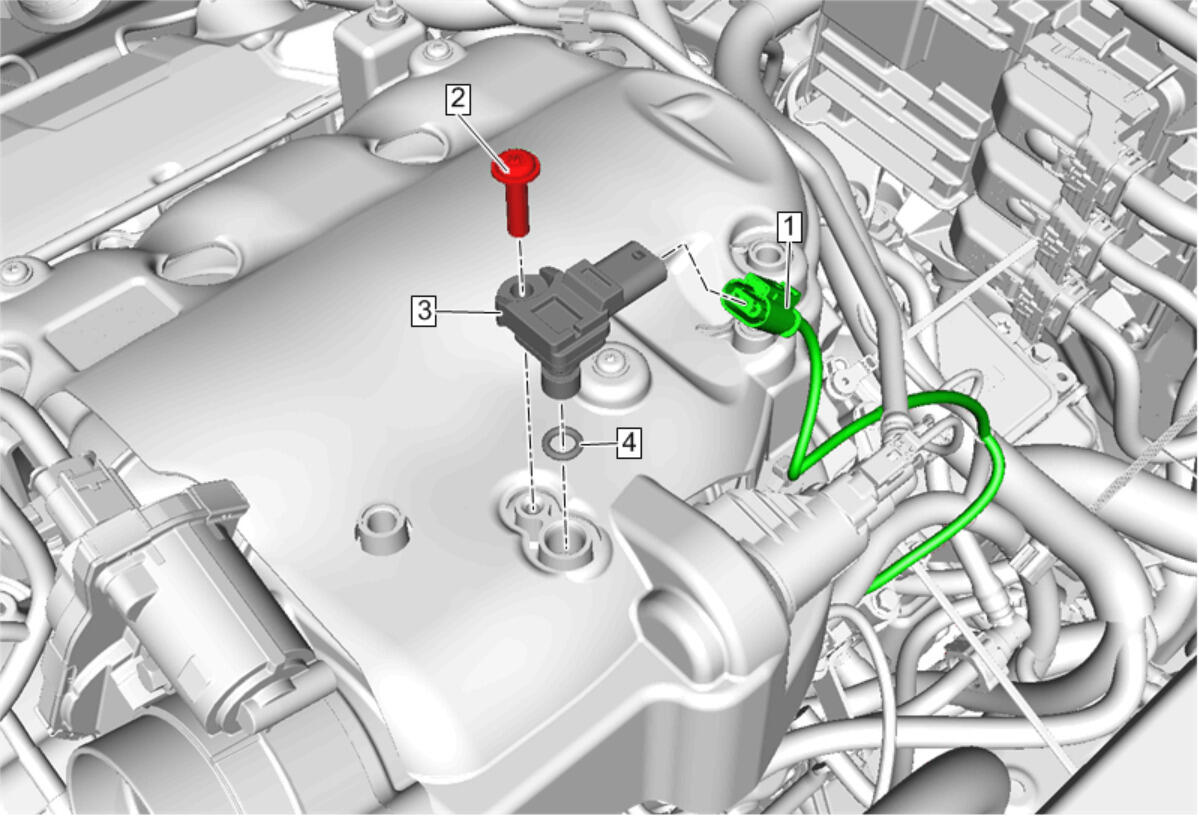

Fig 1: Manifold Absolute Pressure Sensor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove Air Cleaner Outlet Duct. Refer to Air Cleaner Outlet Duct Replacement
1	Electrical Connector
2	Manifold Absolute Pressure Sensor Fastener CAUTION: Refer to Fastener Caution . Tighten: 4 N.m (35 lb in)
3	Manifold Absolute Pressure Sensor
4	Manifold Absolute Pressure Sensor Seal Ring NOTE: Always install the seal supplied with the manifold absolute pressure sensor.
