Installation Procedure

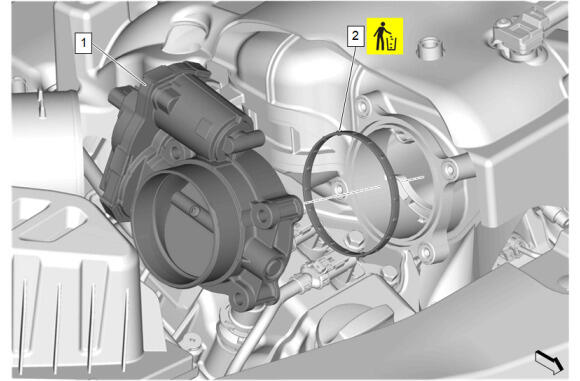

    Fig 1: Throttle Body And Gasket
    GM4298131Courtesy of GENERAL MOTORS COMPANY
  1. Install NEW Throttle Body Gasket (2)
  2. Install Throttle Body (1)

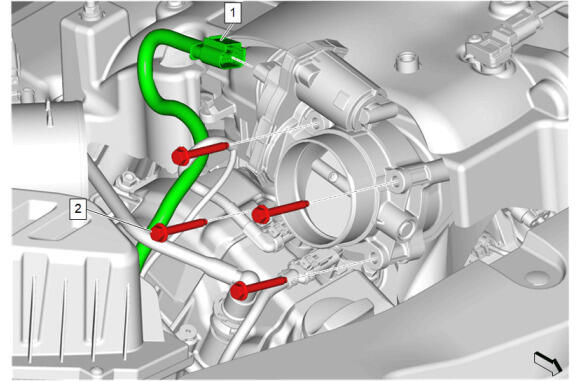

    3. Fig 2: Throttle Body Assembly Electrical Connector And Fasteners
    GM4298127Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  3. Install and tighten Throttle Body Bolts (2) (Qty: 4) to 10 N.m (89 lb in)
  4. Connect Electrical Connector (1)
  5. Install Air Cleaner Outlet Duct. Refer to Air Cleaner Outlet Duct Replacement
  6. Perform the throttle or idle learn. Refer to Throttle or Idle Learn
