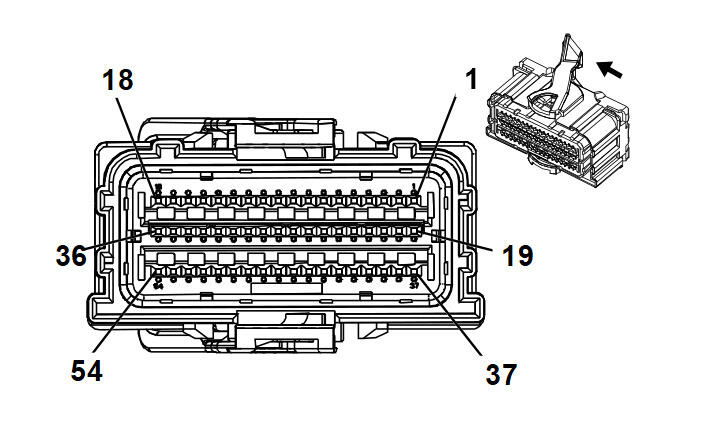

K36 Inflatable Restraint Sensing and Diagnostic Module X2

WARNING: This page is about a different car, the 2017 Cadillac XTS. However, it is still accessible from the selected car via links, so may be relevant.

Connector Part Information

Harness Type: Body
OEM Connector: 7-2098922-3
Service Connector: 19333100
Description: 54-Way F 0.64 Series, Sealed (YE)

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool	Service Terminal	Tray Name	Core Crimp	Insulation Crimp
I	19328872	J-35616-64B (LT BU)	J-38125-11A	Not Available	Not Available	Not Available	Not Available

Pin	Size	Color	Circuit	Function	Terminal Type ID	Option
1	0.5 0.5	OG/GY OG/GY	5223 5223	Left Rear Side Impact SIR Inflator Control Left Rear Side Impact SIR Inflator Control	I I	CZ2 -CZ2
2	0.5 0.5	BN/OG BN/OG	5224 5224	Left Rear Side Impact SIR Inflator Control Left Rear Side Impact SIR Inflator Control	I I	CZ2 -CZ2
3	0.5 0.5	OG/GY OG/GY	5226 5226	Right Rear Side Impact SIR Inflator Control Right Rear Side Impact SIR Inflator Control	I I	CZ2 -CZ2
4	0.5 0.5	VT/OG VT/OG	5225 5225	Right Rear Side Impact SIR Inflator Control Right Rear Side Impact SIR Inflator Control	I I	CZ2 -CZ2
5 - 8	-	-	-	Not Occupied	-	-
9	0.35 0.35	OG/YE OG/YE	3481 3481	Driver Seat Belt Anchor Pretensioner High Control Driver Seat Belt Anchor Pretensioner High Control	I I	CZ2 -CZ2
10	0.35 0.35	YE/OG YE/OG	3482 3482	Driver Seat Belt Anchor Pretensioner Low Control Driver Seat Belt Anchor Pretensioner Low Control	I I	CZ2 -CZ2
11	0.35 0.35	GY/OG GY/OG	3480 3480	Passenger Seat Belt Anchor Pretensioner Low Control Passenger Seat Belt Anchor Pretensioner Low Control	I I	CZ2 -CZ2
12	0.35 0.35	OG/BN OG/BN	3479 3479	Passenger Seat Belt Anchor Pretensioner High Control Passenger Seat Belt Anchor Pretensioner High Control	I I	CZ2 -CZ2
13	0.35 0.35	OG/BU OG/BU	3068 3068	Driver Side Impact Module High Control Driver Side Impact Module High Control	I I	CZ2 -CZ2
14	0.35 0.35	GN/OG GN/OG	3069 3069	Driver Side Impact Module Low Control Driver Side Impact Module Low Control	I I	CZ2 -CZ2
15	0.35 0.35	BN/OG BN/OG	3067 3067	Passenger Side Impact Module Low Control Passenger Side Impact Module Low Control	I I	CZ2 -CZ2
16	0.35 0.35	OG/GY OG/GY	3066 3066	Passenger Side Impact Module High Control Passenger Side Impact Module High Control	I I	CZ2 -CZ2
17	0.5 0.5	GN/OG GN/OG	5019 5019	Left Front Head Curtain Module High Control Left Front Head Curtain Module High Control	I I	CZ2 -CZ2
18	0.5 0.5	VT/YE VT/YE	5020 5020	Left Front Head Curtain Module Low Control Left Front Head Curtain Module Low Control	I I	CZ2 -CZ2
19	0.35 0.35	GN/OG GN/OG	2132 2132	Left Front Side Impact Sensing Module Signal Left Front Side Impact Sensing Module Signal	I I	CZ2 -CZ2
20	0.35 0.35	BK/OG BK/OG	6628 6628	Left Front Side Impact Sensing Module Low Reference Left Front Side Impact Sensing Module Low Reference	I I	CZ2 -CZ2
21	0.35 0.35	BK/OG BK/OG	6629 6629	Right Front Side Impact Sensing Module Low Reference Right Front Side Impact Sensing Module Low Reference	I I	CZ2 -CZ2
22	0.35 0.35	BN/OG BN/OG	2134 2134	Right Front Side Impact Sensing Module Signal Right Front Side Impact Sensing Module Signal	I I	CZ2 -CZ2
23	0.35 0.35	YE/OG YE/OG	354 354	Left Front Discriminating Sensor Signal Left Front Discriminating Sensor Signal	I I	CZ2 -CZ2
24	0.35 0.35	BK/OG BK/OG	5045 5045	Left Front Discriminating Sensor Low Reference Left Front Discriminating Sensor Low Reference	I I	CZ2 -CZ2
25	0.35 0.35	BK/OG BK/OG	5600 5600	Right Front Discriminating Sensor Low Reference Right Front Discriminating Sensor Low Reference	I I	CZ2 -CZ2
26	0.35 0.35	OG/GN OG/GN	1409 1409	Right Front Discriminating Sensor Signal Right Front Discriminating Sensor Signal	I I	CZ2 -CZ2
27	0.5 0.5	BU BU	6620 6620	Left Middle Side Impact Sensing Module Signal Left Middle Side Impact Sensing Module Signal	I I	CZ2 -CZ2
28	0.5 0.5	BK/OG BK/OG	6621 6621	Left Middle Side Impact Sensing Module Low Reference Left Middle Side Impact Sensing Module Low Reference	I I	CZ2 -CZ2
29	0.5 0.5	BK/OG BK/OG	6625 6625	Right Middle Side Impact Sensing Module Low Reference Right Middle Side Impact Sensing Module Low Reference	I I	CZ2 -CZ2
30	0.5 0.5	VT/OG VT/OG	6624 6624	Right Middle Side Impact Sensing Module Signal Right Middle Side Impact Sensing Module Signal	I I	CZ2 -CZ2
31 - 36	-	-	-	Not Occupied	-	-
37	0.5 0.5	OG/BK OG/BK	3477 3477	Driver Seat Belt Retractor Pretensioner High Control Driver Seat Belt Retractor Pretensioner High Control	I I	CZ2 -CZ2
38	0.5 0.5	GY/YE GY/YE	3478 3478	Driver Seat Belt Retractor Pretensioner Low Control Driver Seat Belt Retractor Pretensioner Low Control	I I	CZ2 -CZ2
39	0.5 0.5	WH/OG WH/OG	3476 3476	Passenger Seat Belt Retractor Pretensioner Low Control Passenger Seat Belt Retractor Pretensioner Low Control	I I	CZ2 -CZ2
40	0.5 0.5	GN/OG GN/OG	3475 3475	Passenger Seat Belt Retractor Pretensioner High Control Passenger Seat Belt Retractor Pretensioner High Control	I I	CZ2 -CZ2
41	0.35 0.35	OG/BN OG/BN	238 238	Driver Seat Belt Switch Signal Driver Seat Belt Switch Signal	I I	CZ2 -CZ2
42	-	-	-	Not Occupied	-	-
43	0.35 0.35	BK/OG BK/OG	1363 1363	Driver Seat Belt Switch Low Reference Driver Seat Belt Switch Low Reference	I I	CZ2 -CZ2
44	0.35 0.35	BK/OG BK/OG	1361 1361	Passenger Seat Belt Switch Low Reference Passenger Seat Belt Switch Low Reference	I I	CZ2 -CZ2
45	0.35 0.35	OG/VT OG/VT	1362 1362	Passenger Seat Belt Switch Signal Passenger Seat Belt Switch Signal	I I	CZ2 -CZ2
46 - 52	-	-	-	Not Occupied	-	-
53	0.5 0.5	YE/GY YE/GY	5021 5021	Right Front Head Curtain Module High Control Right Front Head Curtain Module High Control	I I	CZ2 -CZ2
54	0.5 0.5	WH/OG WH/OG	5022 5022	Right Front Head Curtain Module Low Control Right Front Head Curtain Module Low Control	I I	CZ2 -CZ2
