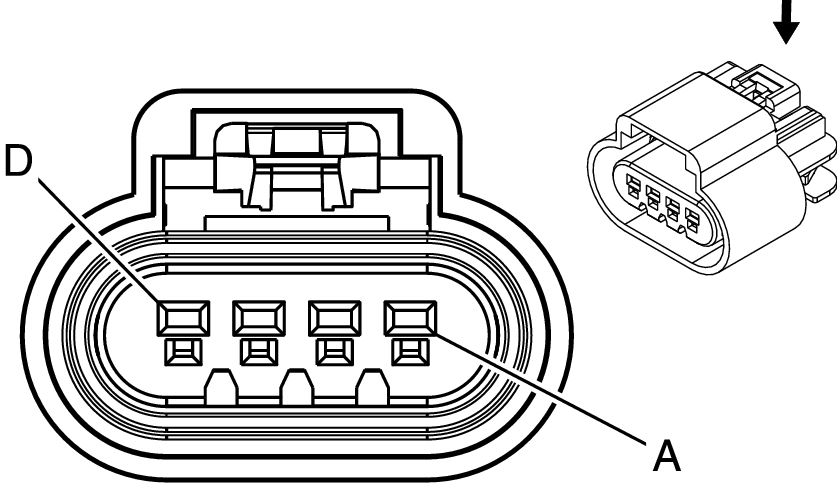

K47 Rear Differential Clutch Control Module X2 (F46)
WARNING: This page is about a different car, the 2017 Cadillac XTS. However, it is still accessible from the selected car via links, so may be relevant.
|
|
Connector Part Information
- Harness Type: Rear Differential
- OEM Connector: 15326815
- Service Connector: Service by Harness - See Part Catalog
- Description: 4-Way F 150 GT Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
Not Available |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| A |
0.75 |
BK |
935 |
Differential Lock Actuator Low Control |
I |
- |
| B |
0.75 |
RD |
934 |
Differential Lock Actuator High Control |
I |
- |
| C |
0.75 |
BK |
987 |
Differential Clutch Pump Low Control |
I |
- |
| D |
0.75 |
YE |
933 |
Differential Clutch Pump High Control |
I |
- |
