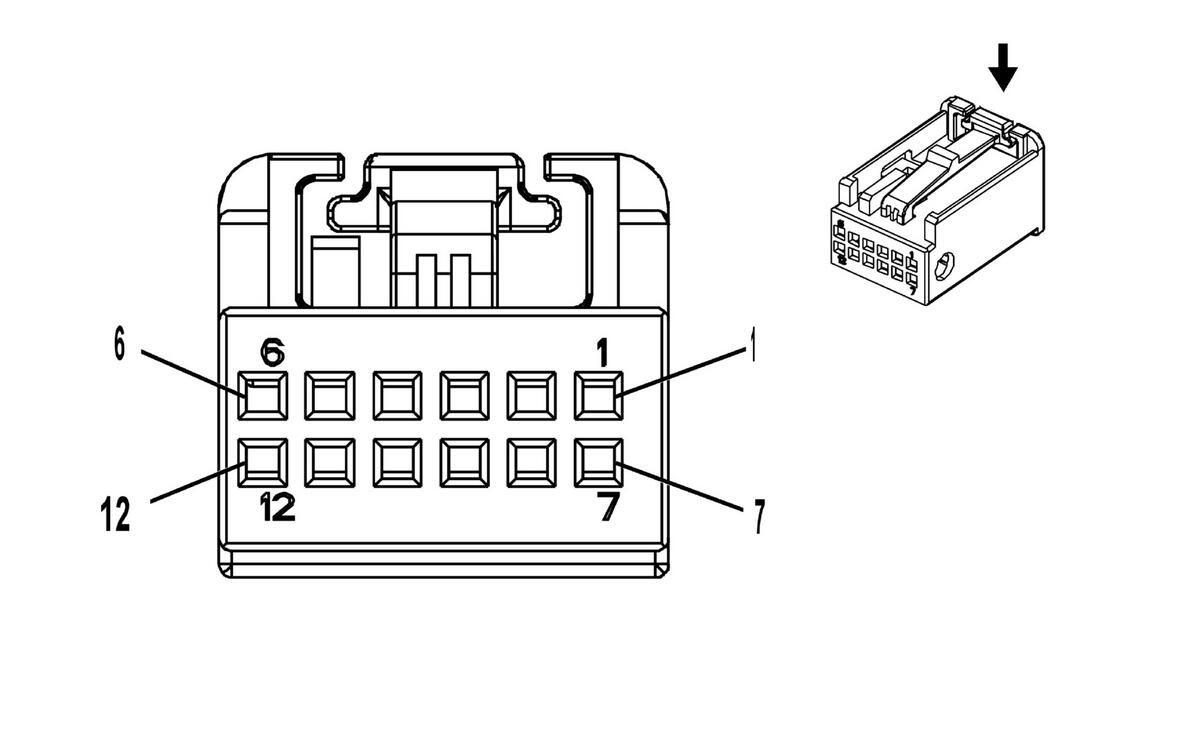

S70L Steering Wheel Controls Switch - Left
WARNING: This page is about a different car, the 2017 Cadillac XTS. However, it is still accessible from the selected car via links, so may be relevant.
|
|
Connector Part Information
- Harness Type: Steering Wheel
- OEM Connector: 13578798
- Service Connector: Service by Harness - See Part Catalog
- Description: 12-Way F 0.64 GET Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Service by Harness - See Part Catalog |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.35 |
GY |
9500 |
Voice Switch Control |
I |
- |
| 2 |
0.35 |
OG/BK |
6816 |
Indicator Dimming Control |
I |
- |
| 3 |
0.35 |
BK/YE |
9501 |
Phone Switch Control |
I |
- |
| 4 |
0.35 |
L-BU |
6817 |
LED Backlight Dimming Control |
I |
- |
| 5 |
0.35 |
VT |
9502 |
Heated Steering Wheel Indicator Control |
I |
- |
| 6 |
0.35 |
BK |
1550 |
Ground |
I |
- |
| 7 |
0.35 |
RD/WH |
5440 |
Battery Positive Voltage |
I |
- |
| 8 |
0.35 |
WH |
1444 |
12 Volt Reference |
I |
- |
| 9 |
0.35 |
GY/GN |
5737 |
Adaptive Cruise Control Gap Up/Down Switch Signal |
I |
- |
| 10 |
0.35 |
BN |
1884 |
Cruise Control Set/Coast/Resume/Accelerate Switch Signal |
I |
- |
| 11 |
0.5 |
OG |
5883 |
Heated Steering Wheel Switch Signal |
I |
- |
| 12 |
0.5 |
YE |
5884 |
Heated Steering Wheel Switch LED Control |
I |
- |
