X50D Fuse Block - Battery Top View

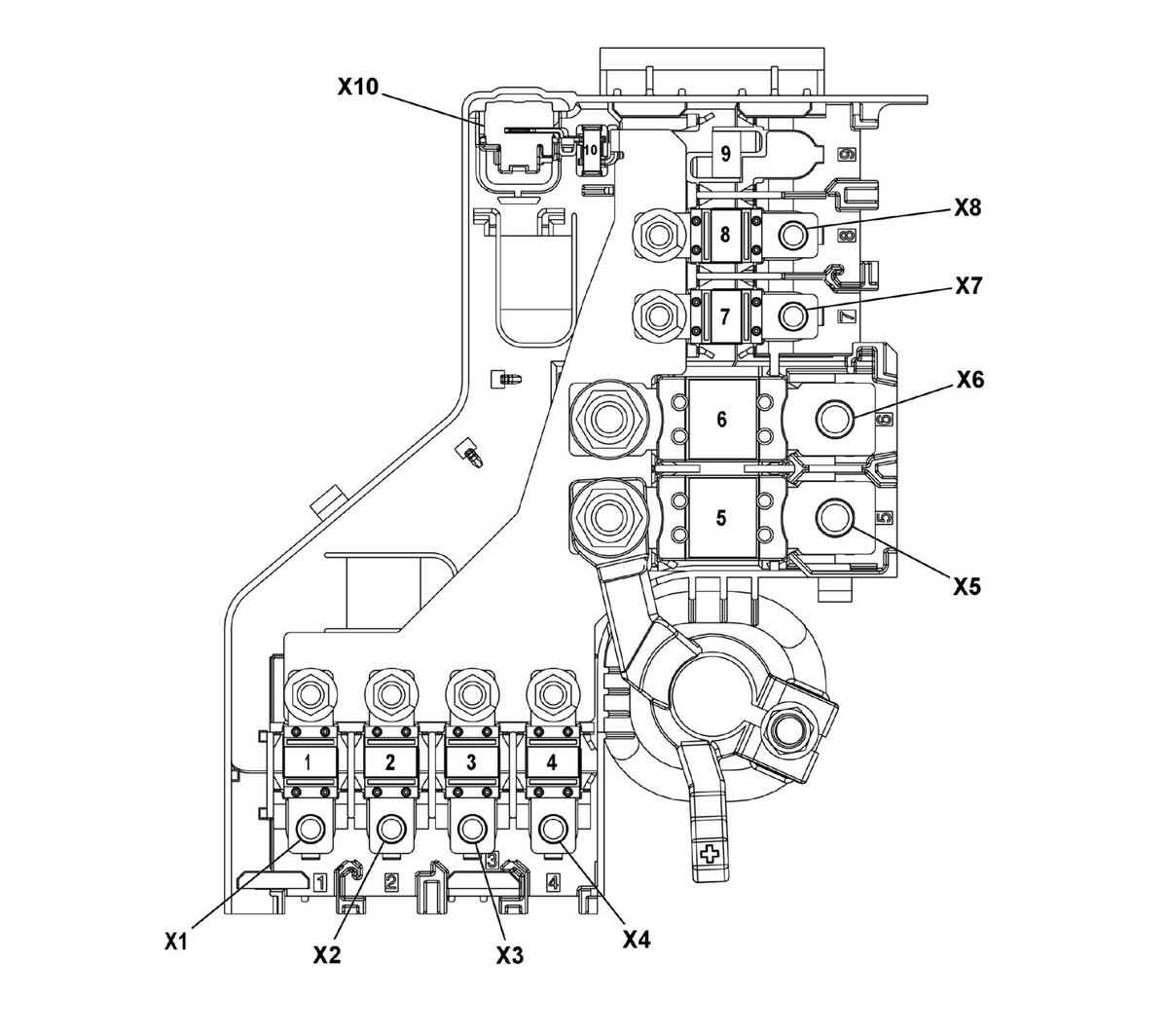

Fig 1: X50D Fuse Block - Battery Top View
GM4260433Courtesy of GENERAL MOTORS COMPANY
X50D FUSE BLOCK - BATTERY FUSE IDENTIFICATION

No. Device Label Name Device Assigned Name Rating Description
1 - F1BA 150A
  • X53A Fuse Block - Rear Body
2 - F2BA 100A
  • X51A Fuse Block - Instrument Panel
3 - F3BA 100A
  • X51A Fuse Block - Instrument Panel
4 - F4BA 70A (-U4G/V92), 100A (U4G/V92)
  • K22 Cooling Fan Control Module
5 - F5BA 250A
  • X50A Fuse Block - Underhood
6 - F6BA 350A
  • M64 Starter Motor
7 - F7BA 200A
  • G13 Generator
8 - F8BA 100A
  • K43 Power Steering Control Module
9 - F9BA -
  • Not Used
10 - F10BA 5A
  • B110 Battery Sensor Module
