X53A Fuse Block - Rear Body Label

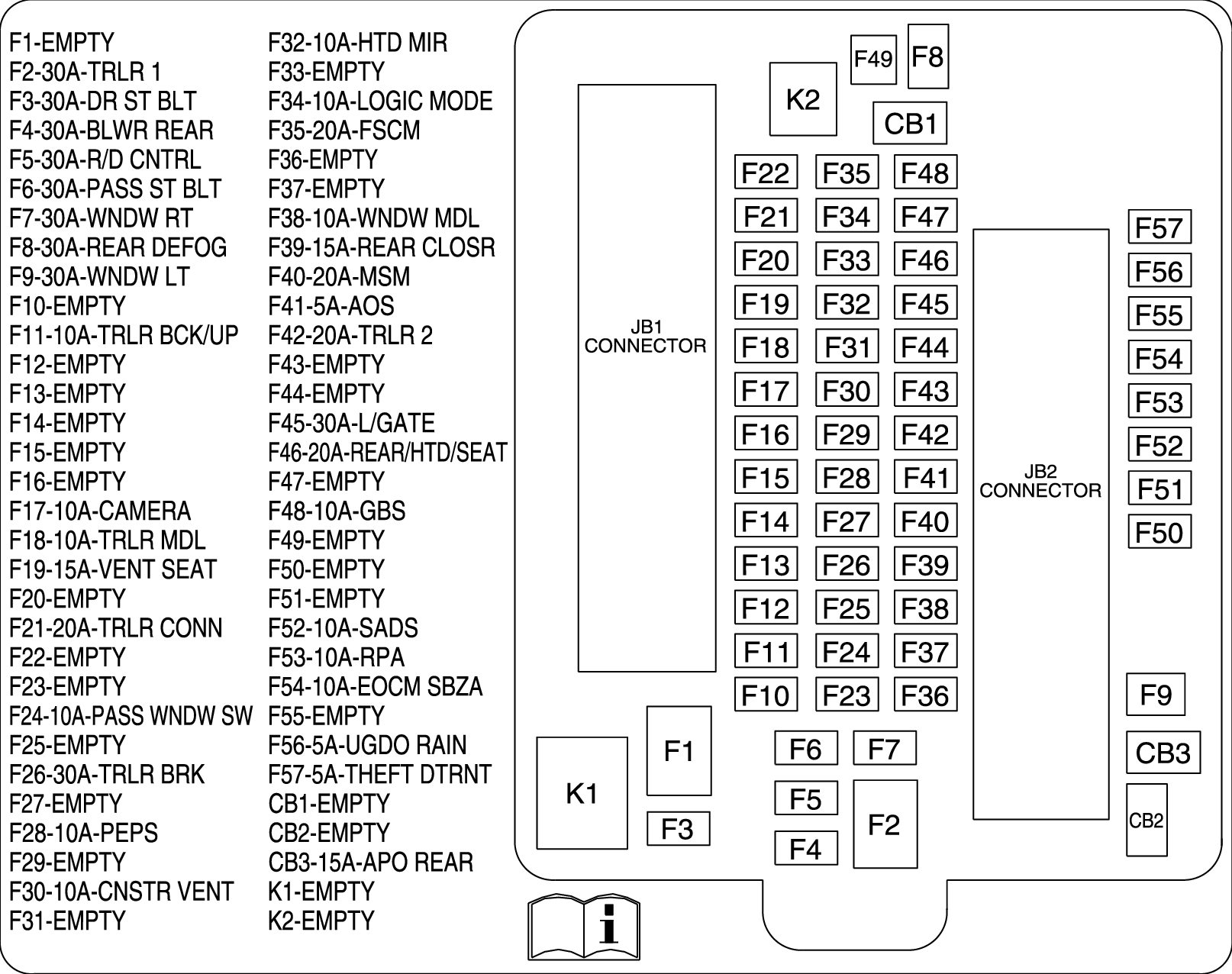

Fig 1: X53A Fuse Block - Rear Body Label
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
