Driver Door Trim Components

Driver Door Trim Components

Items
1. E1D Accent Lamp - Driver Door (DR4 with UVH) E1D Accent Lamp - Driver Door (DR4+UVH)
2. S45B Liftgate Control Switch - Interior S45B Liftgate Control Switch - Interior
3. S79D Window Switch - Driver S79D Window Switch - Driver
4. S47D Seat Memory Switch - Driver (AAB) S47D Seat Memory Switch - Driver (AAB)
5. S13D Door Lock Switch - Driver S13D Door Lock Switch - Driver
6. P19HD Speaker - Left Front Door Tweeter (UQS) P19HD Speaker - Left Front Door Tweeter (UQS)
7. E64D Flood Lamp - Driver Door Pull Handle (TSP) E64D Flood Lamp - Driver Door Pull Handle (TSP)
8. E8D Door Courtesy Lamp - Driver E8D Door Courtesy Lamp - Driver

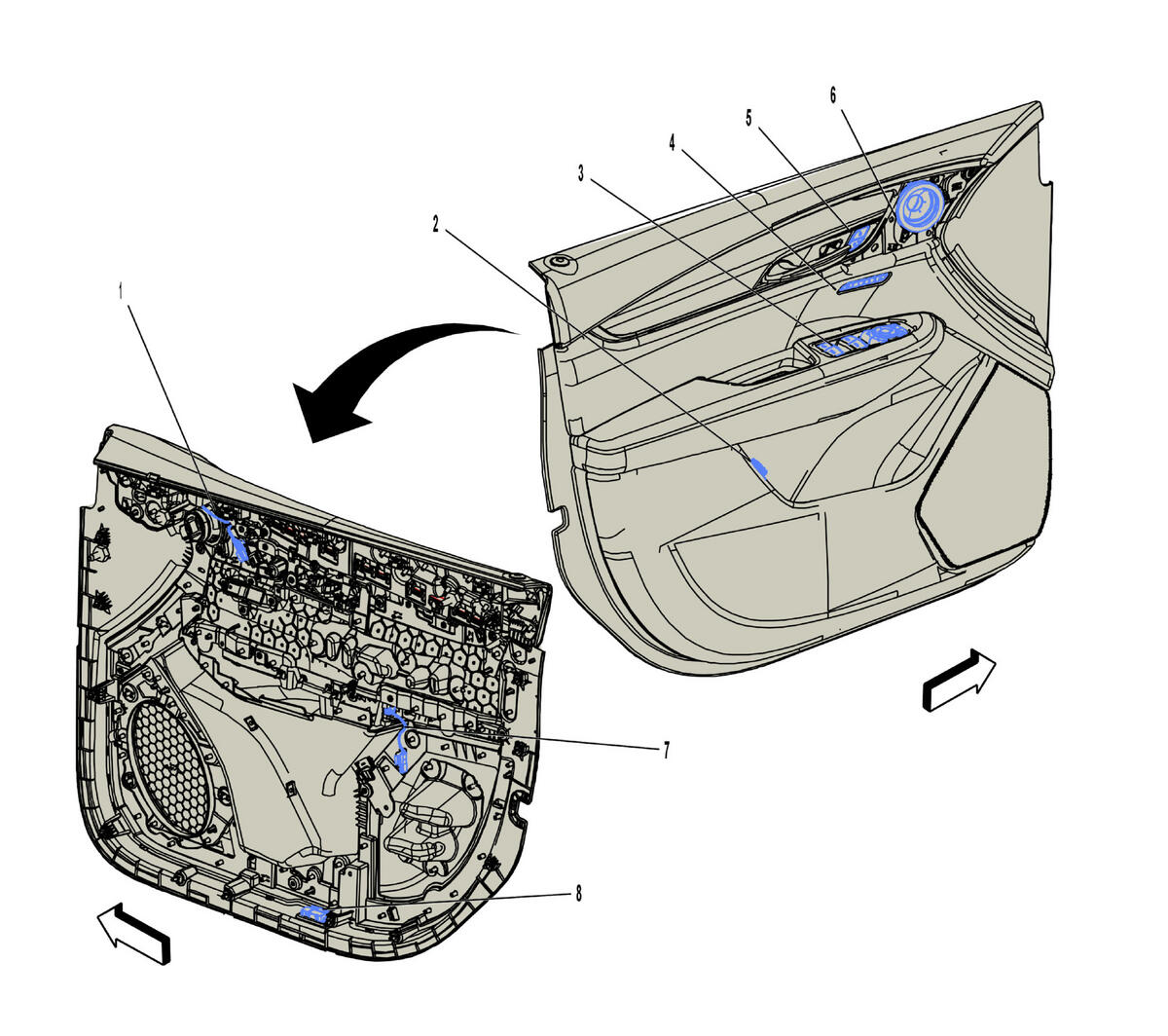

Fig 1: Driver Door Trim Components
GM4279424Courtesy of GENERAL MOTORS COMPANY
