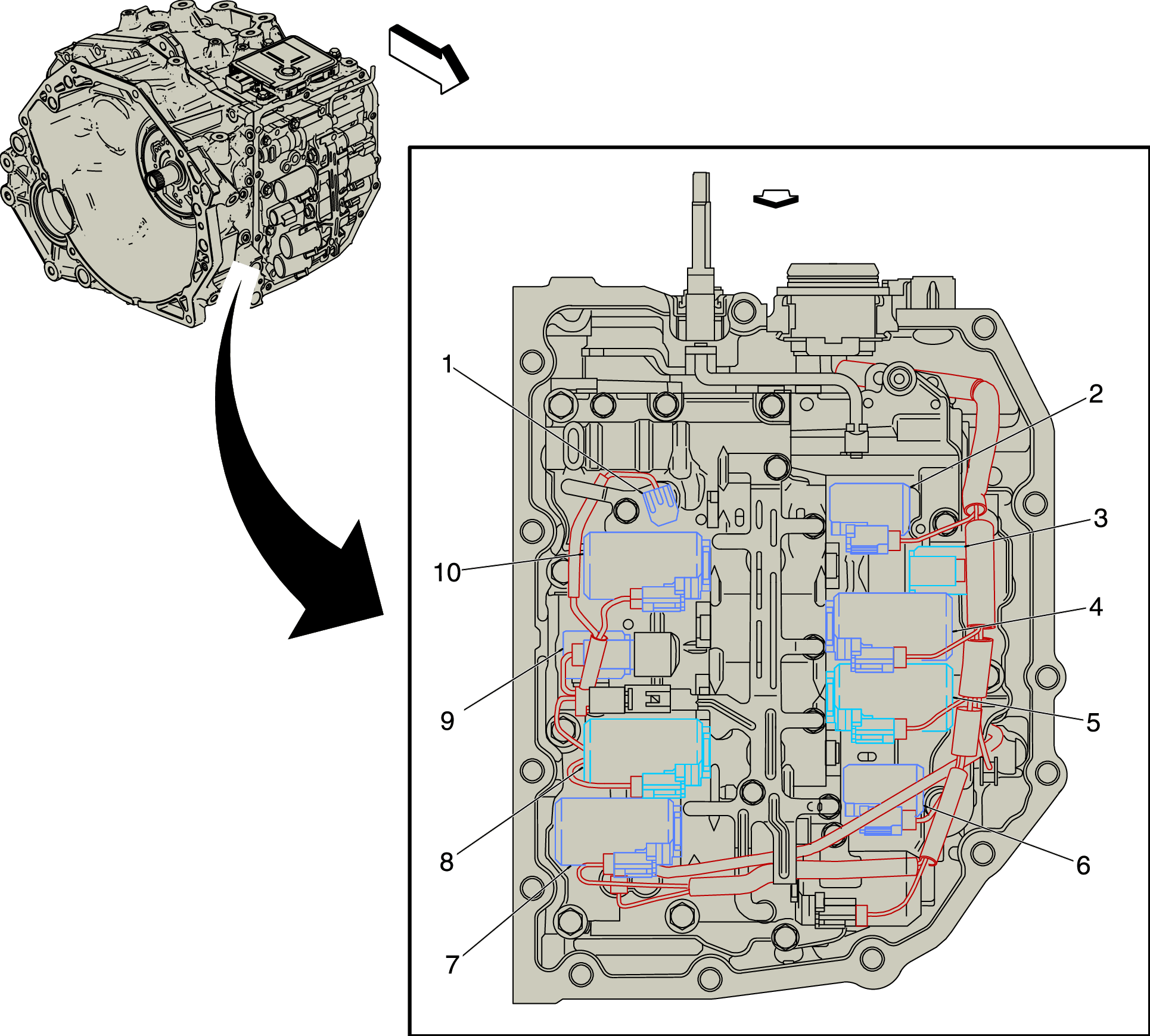

Automatic Transmission - Valve Body Components [AF50-8]
Automatic Transmission - Valve Body Components [AF50-8]
| Items |
|---|
| 1. B13 Transmission Fluid Temperature Sensor |
| 2. Q39A Torque Converter Clutch Pressure Control Solenoid Valve |
| 3. Q32B Shift Solenoid Valve 2 |
| 4. Q27B Pressure Control Solenoid Valve 2 |
| 5. Q27C Pressure Control Solenoid Valve 3 |
| 6. Q23 Line Pressure Control Solenoid Valve |
| 7. Q27E Pressure Control Solenoid Valve 5 |
| 8. Q27D Pressure Control Solenoid Valve 4 |
| 9. Q32A Shift Solenoid Valve 1 |
| 10. Q27A Pressure Control Solenoid Valve 1 |
