Windshield Washer Solvent Container Level Sensor Replacement

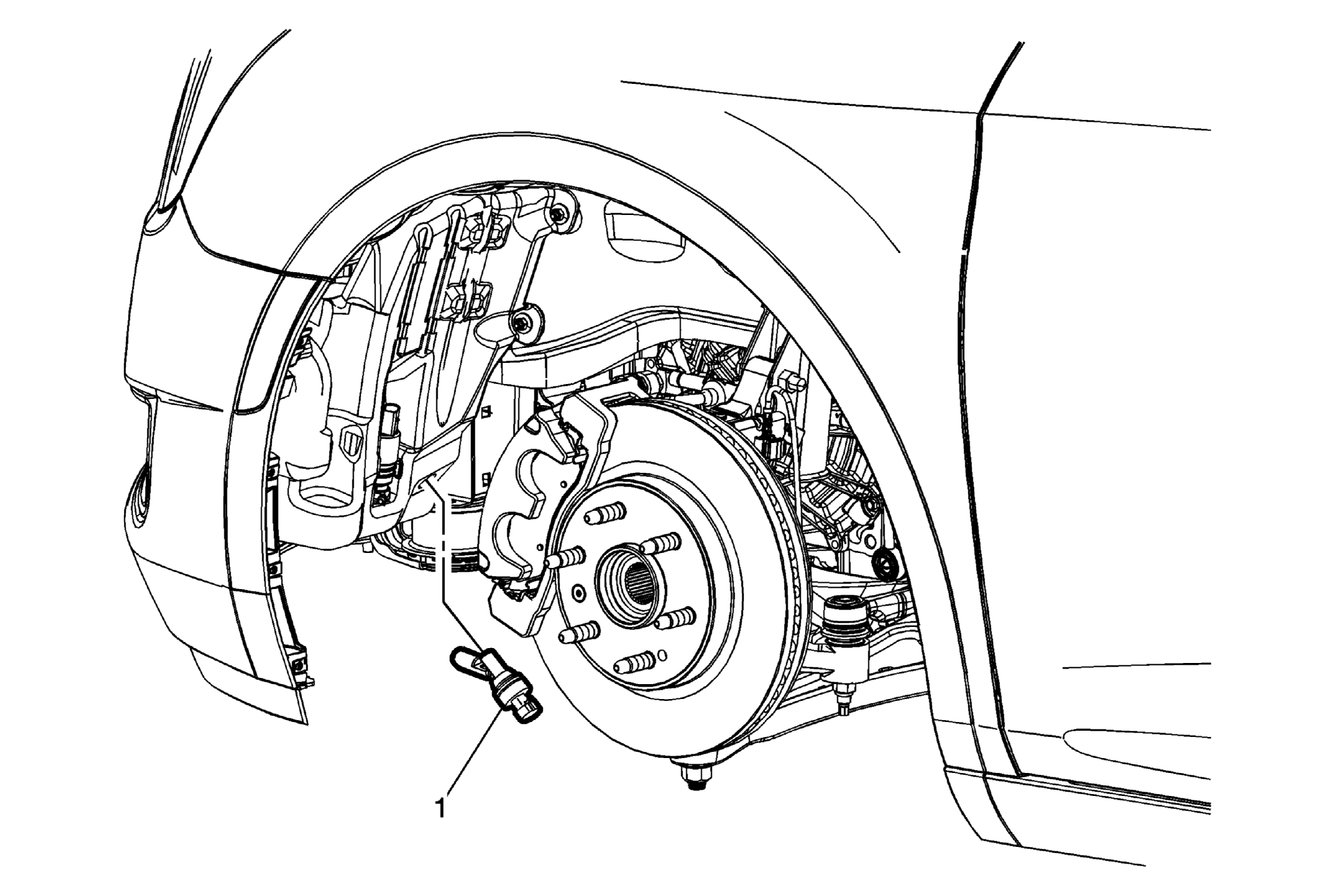

Fig 1: Windshield Washer Solvent Level Sensor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the left front wheelhouse front liner. Refer to Front Wheelhouse Front Liner Replacement
1	Windshield Washer Solvent Level Sensor Procedure Disconnect the electrical connector from the windshield washer solvent level sensor. Place a clean suitable drain pan under the windshield washer solvent container to secure the windshield washer solvent when the level sensor and seal are removed. Using two flat-bladed tools, place the ends of the flat blades under each side of the windshield washer solvent level sensor seal. Twisting in opposite directions, pry outward, the level sensor from the washer solvent container. Remove and discard the windshield washer level sensor seal and replace with new.

Callout

Component Name

Preliminary Procedure
Remove the left front wheelhouse front liner. Refer to Front Wheelhouse Front Liner Replacement

Windshield Washer Solvent Level Sensor

Procedure

Disconnect the electrical connector from the windshield washer solvent level sensor.
Place a clean suitable drain pan under the windshield washer solvent container to secure the windshield washer solvent when the level sensor and seal are removed.
Using two flat-bladed tools, place the ends of the flat blades under each side of the windshield washer solvent level sensor seal.
Twisting in opposite directions, pry outward, the level sensor from the washer solvent container.
Remove and discard the windshield washer level sensor seal and replace with new.
