Headlamp Washer (CE4), Windshield Washer and Rain/Ambient Light Sensor Module

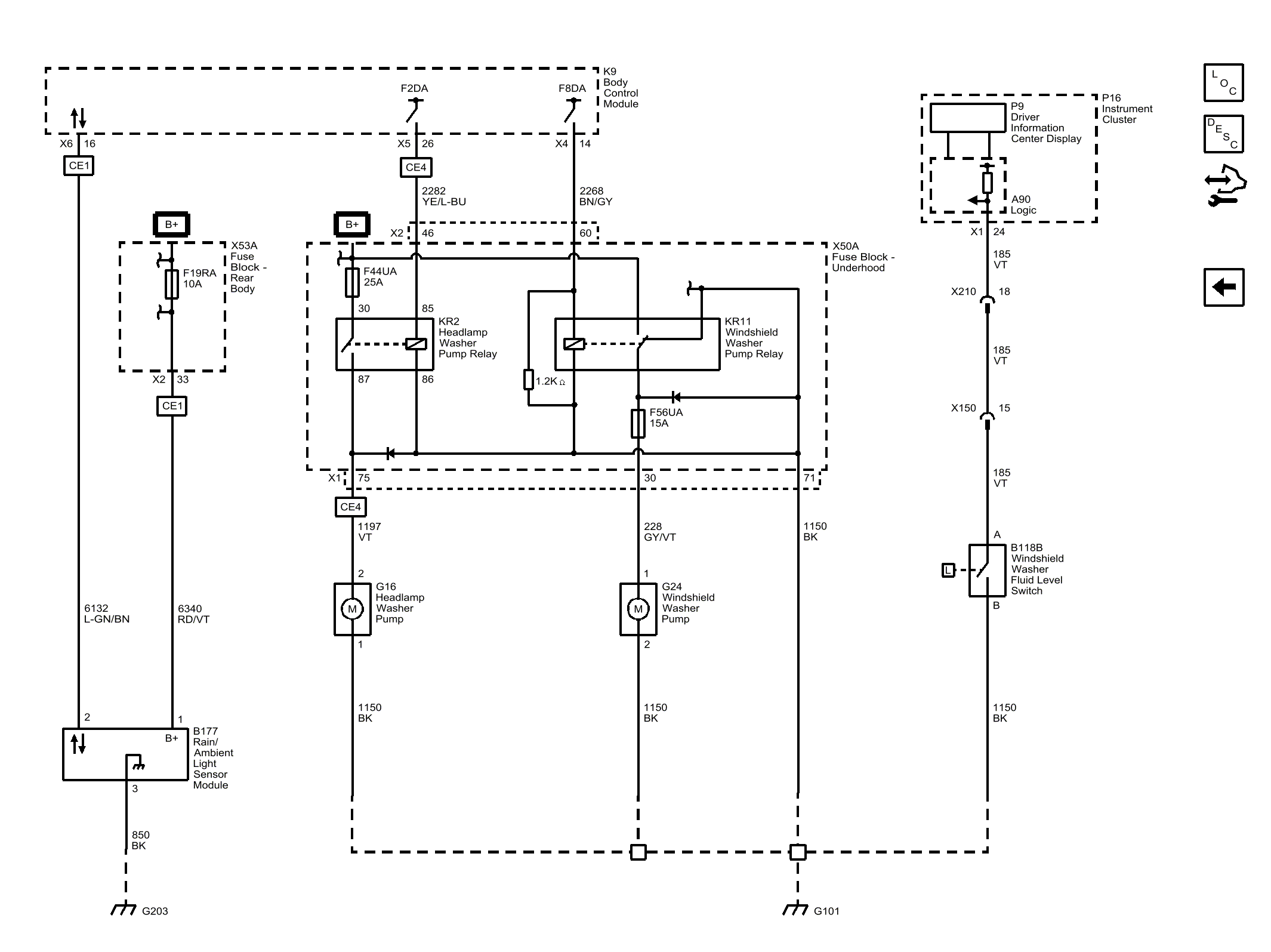

Fig 1: Headlamp Washer (CE4), Windshield Washer and Rain/Ambient Light Sensor Module
GM4453979Courtesy of GENERAL MOTORS COMPANY
