Engine Compartment Components - Front (2 of 2)

Engine Compartment Components - Front (2 of 2)

Items
1. B59L Front Impact Sensor - Left B59L Front Impact Sensor - Left
2. B55 Hood Ajar Switch B55 Engine Hood Switch
3. B59R Front Impact Sensor - Right B59R Front Impact Sensor - Right
4. KR14 Brake Booster Pump Motor Relay KR14 Brake Booster Pump Motor Relay (J55)KR14 Brake Booster Pump Motor Relay X1 (J64)KR14 Brake Booster Pump Motor Relay X2 (J64)
5. M9 Brake Booster Pump Motor M9 Brake Booster Pump Motor

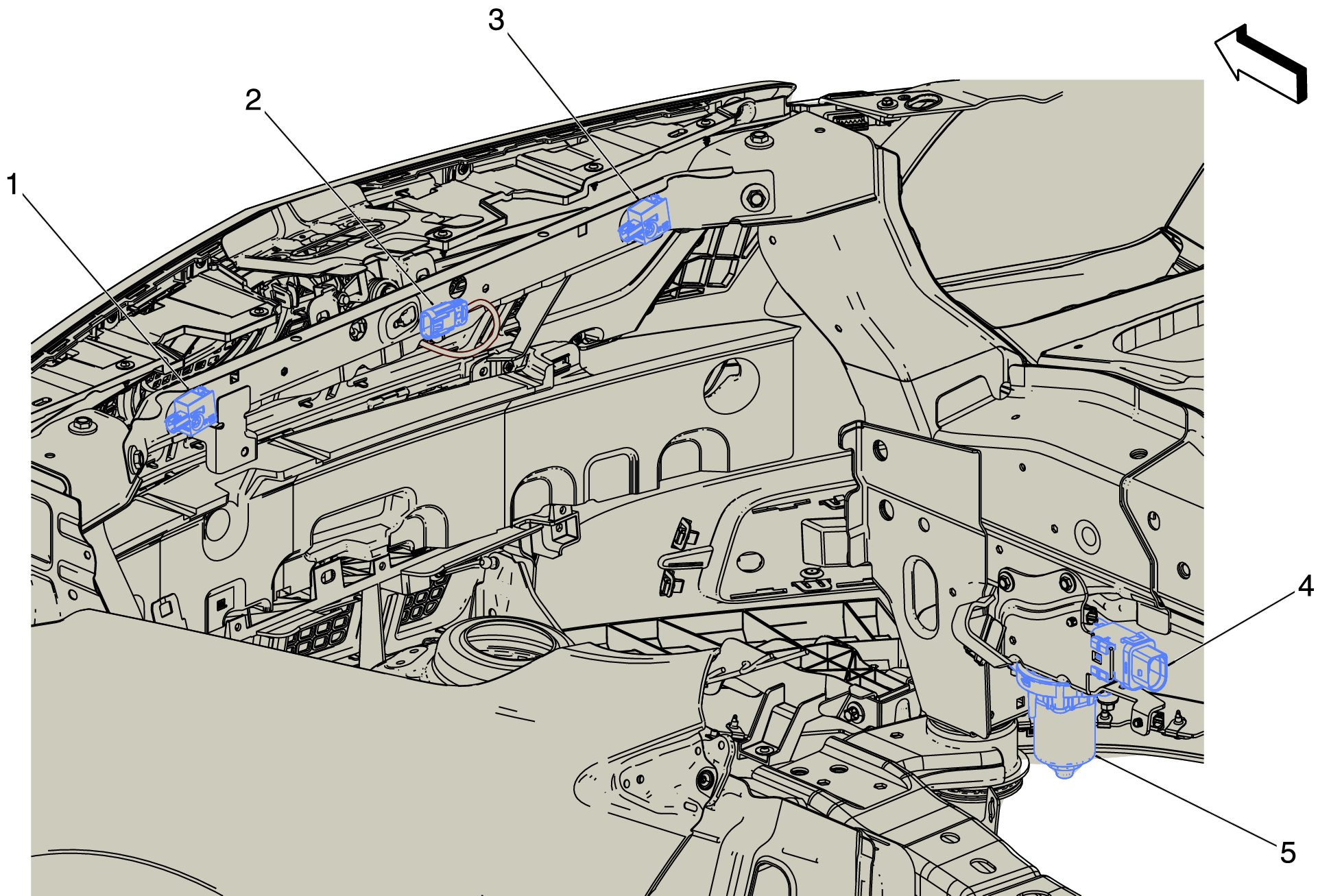

Fig 1: Engine Compartment Components - Front (2 of 2)
GM2754036Courtesy of GENERAL MOTORS COMPANY
