Rear Window Shelf Components

Rear Window Shelf Components

Items
1. E8S Rear Compartment Courtesy Lamp E8S Rear Compartment Courtesy Lamp
2. P19AC Speaker - Subwoofer (UQS) P19AC Speaker - Subwoofer
3. T15 Navigation Antenna Signal Splitter T15 Navigation Antenna Signal Splitter X1 (-B9Q/V4U)T15 Navigation Antenna Signal Splitter X1 (B9Q/V4U)T15 Navigation Antenna Signal Splitter X2 (-B9Q)T15 Navigation Antenna Signal Splitter X2 (B9Q)T15 Navigation Antenna Signal Splitter X3 (-B9Q)T15 Navigation Antenna Signal Splitter X3 (B9Q)

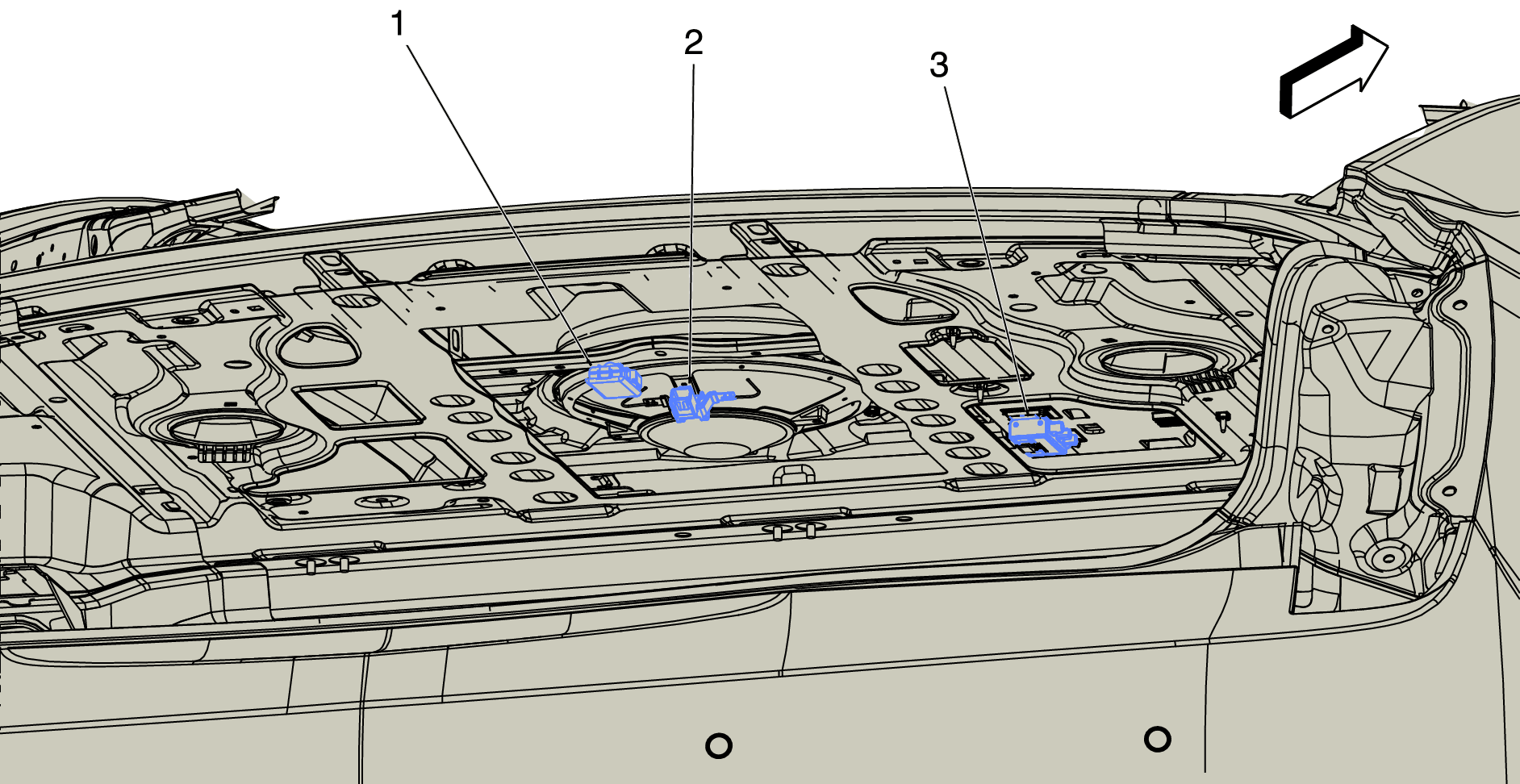

Fig 1: Rear Window Shelf Components
GM3921559Courtesy of GENERAL MOTORS COMPANY
