K26 Headlamp Control Module

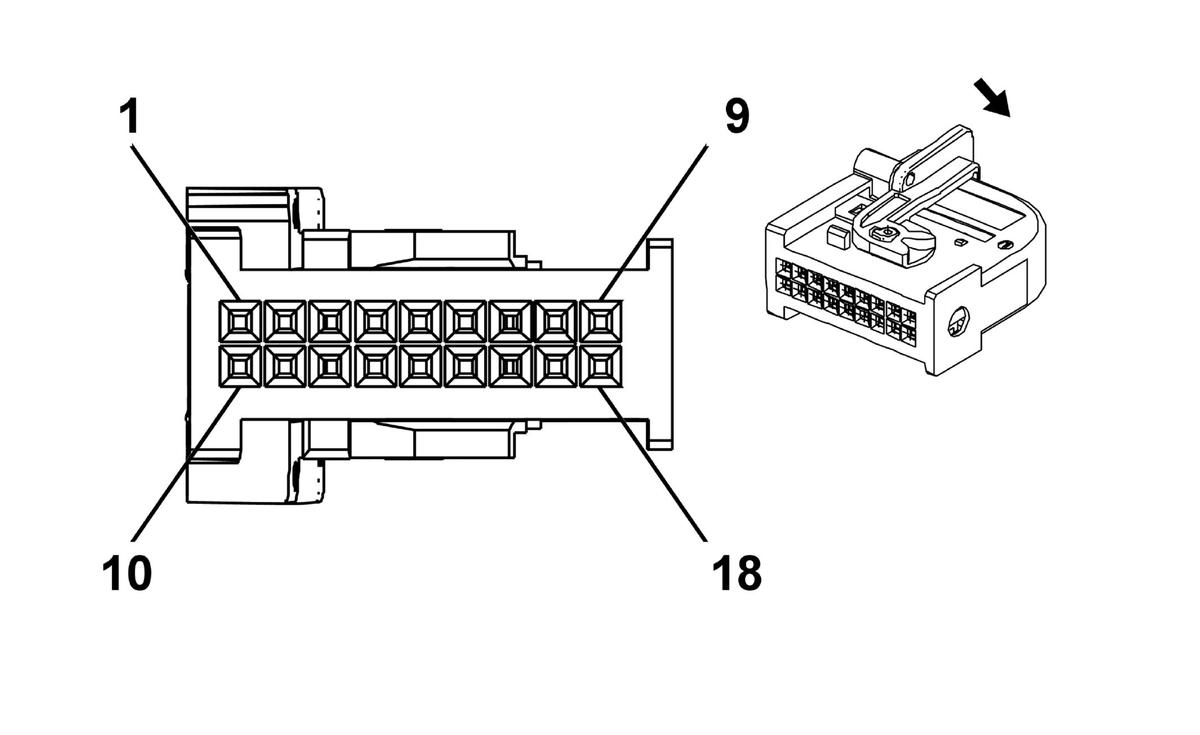

Connector Part Information

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool	Service Terminal	Tray Name	Core Crimp	Insulation Crimp
I	13579918	J-35616-64B (LT BU)	J-38125-12A	Not Available	Not Available	Not Available	Not Available

Pin	Size	Color	Circuit	Function	Terminal Type ID	Option
1	0.35	RD/YE	740	Battery Positive Voltage	I	-
2	0.5	BN/WH	7525	Front Axle Level Sensor Signal	I	-
3	0.5	BK	850	Ground	I	-
4	0.5	BN	2184	Automatic Level Control Position Sensor Signal	I	-
5	0.35	WH/GY	3936	High Speed GMLAN Serial Data (-) 8	I	-
6	-	-	-	Not Occupied	-	-
7	0.35	GN/WH	7530	Local Interconnect Network Serial Data Bus 8	I	-
8	0.35	WH/BU	5986	Serial Data Communication Enable	I	-
9	0.5 0.35	WH WH/GY	2501 3936	High Speed GMLAN Serial Data (-) 1 High Speed GMLAN Serial Data (-) 8	I I	TR7/T95-UGN-UVZ UGN/UVZ
10	0.5	WH/RD	2165	Automatic Level Control Position Sensor 5V Reference	I	-
11	-	-	-	Not Occupied	-	-
12	0.5	BK/BN	2185	Automatic Level Control Position Sensor Low Reference	I	-
13	-	-	-	Not Occupied	-	-
14	0.35	BU/GY	3935	High Speed GMLAN Serial Data (+) 8	I	-
15	-	-	-	Not Occupied	-	-
16	0.35	GN/BN	7529	Local Interconnect Network Serial Data Bus 7	I	-
17	-	-	-	Not Occupied	-	-
18	0.5 0.35	BU BU/GY	2500 3935	High Speed GMLAN Serial Data (+) 1 High Speed GMLAN Serial Data (+) 8	I I	TR7/T95-UGN-UVZ UGN/UVZ
