Rear Parking Assist Sensors and Control (UD5/UD7/UFQ)

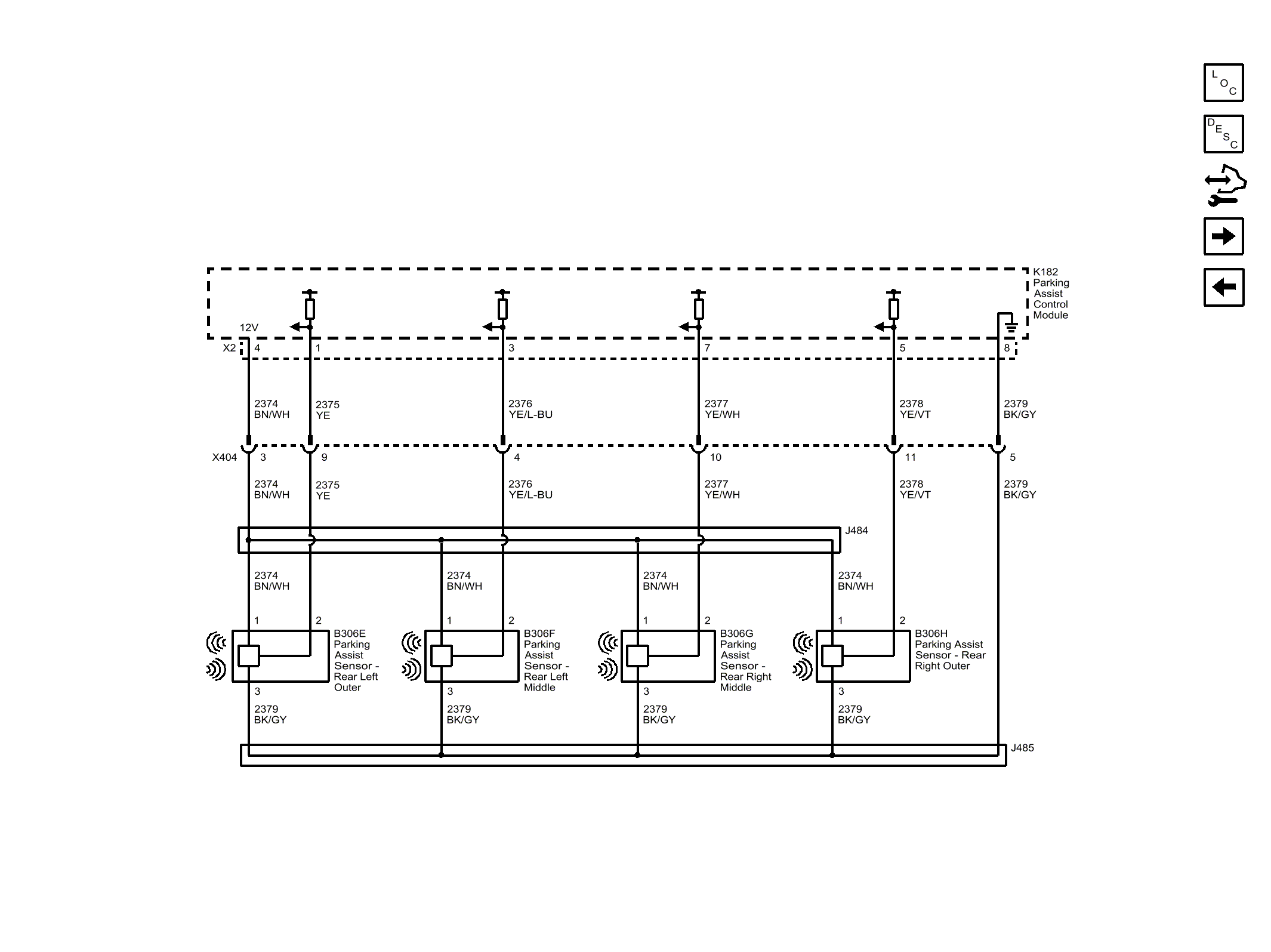

Fig 1: Rear Parking Assist Sensors and Control (UD5/UD7/UFQ)
GM4454595Courtesy of GENERAL MOTORS COMPANY
