Video Display Replacement

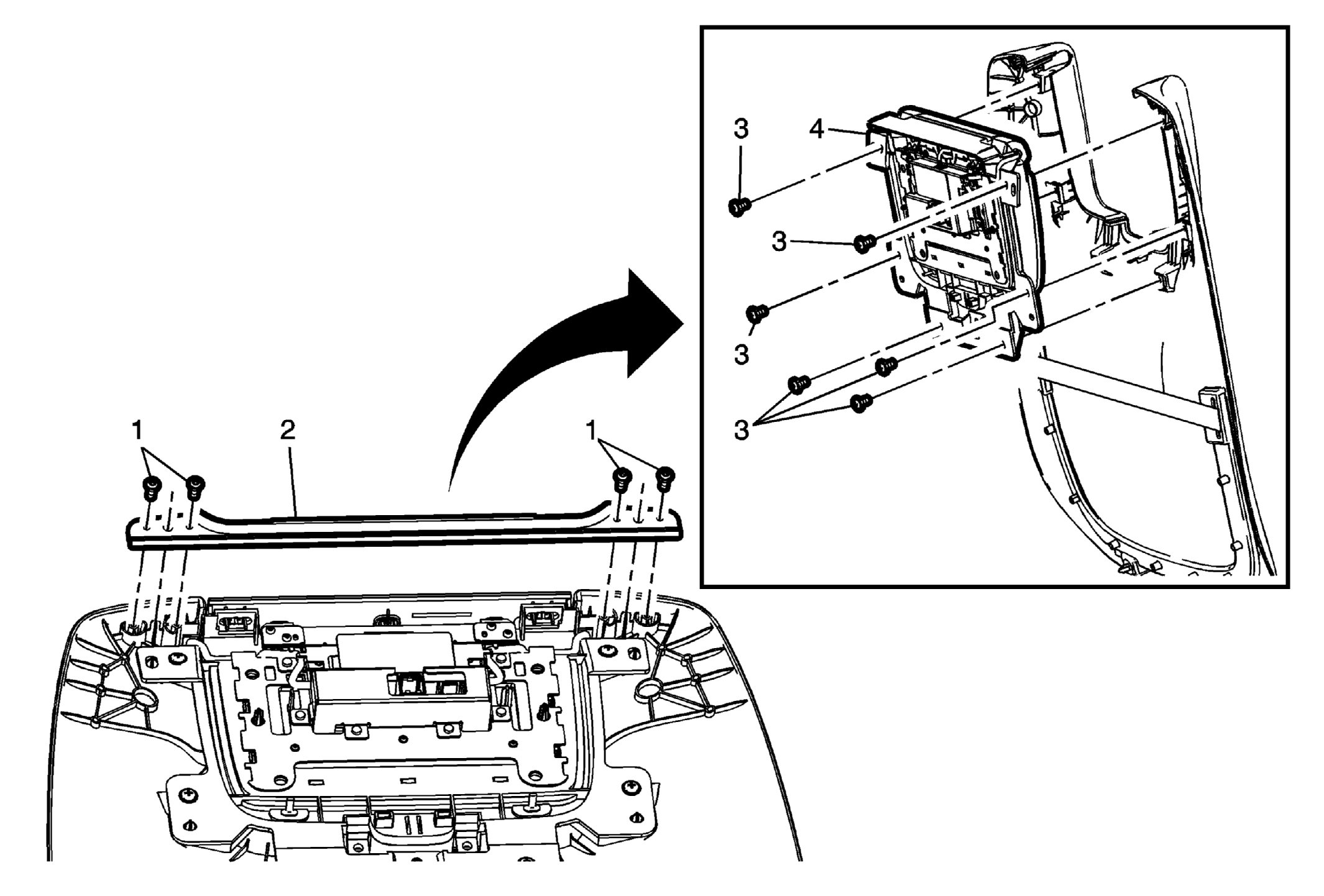

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the front seat back cushion finish panel. Refer to Front Seat Back Cushion Finish Panel ReplacementFront Seat Back Cushion Finish Panel Replacement (with UWG) . |
|
| 1 | Front Seat Back Finish Panel Bracket Fasteners (Qty: 4) |
| 2 | Front Seat Back Finish Panel Bracket |
| 3 | Video Display Fasteners (Qty: 6)
CAUTION:
Refer to Fastener Caution . Tighten 9.5 N.m (84 lb in) |
| 4 | Video Display Procedure Disconnect the electrical connections. |
