Power, Ground, Serial Data and Antennas

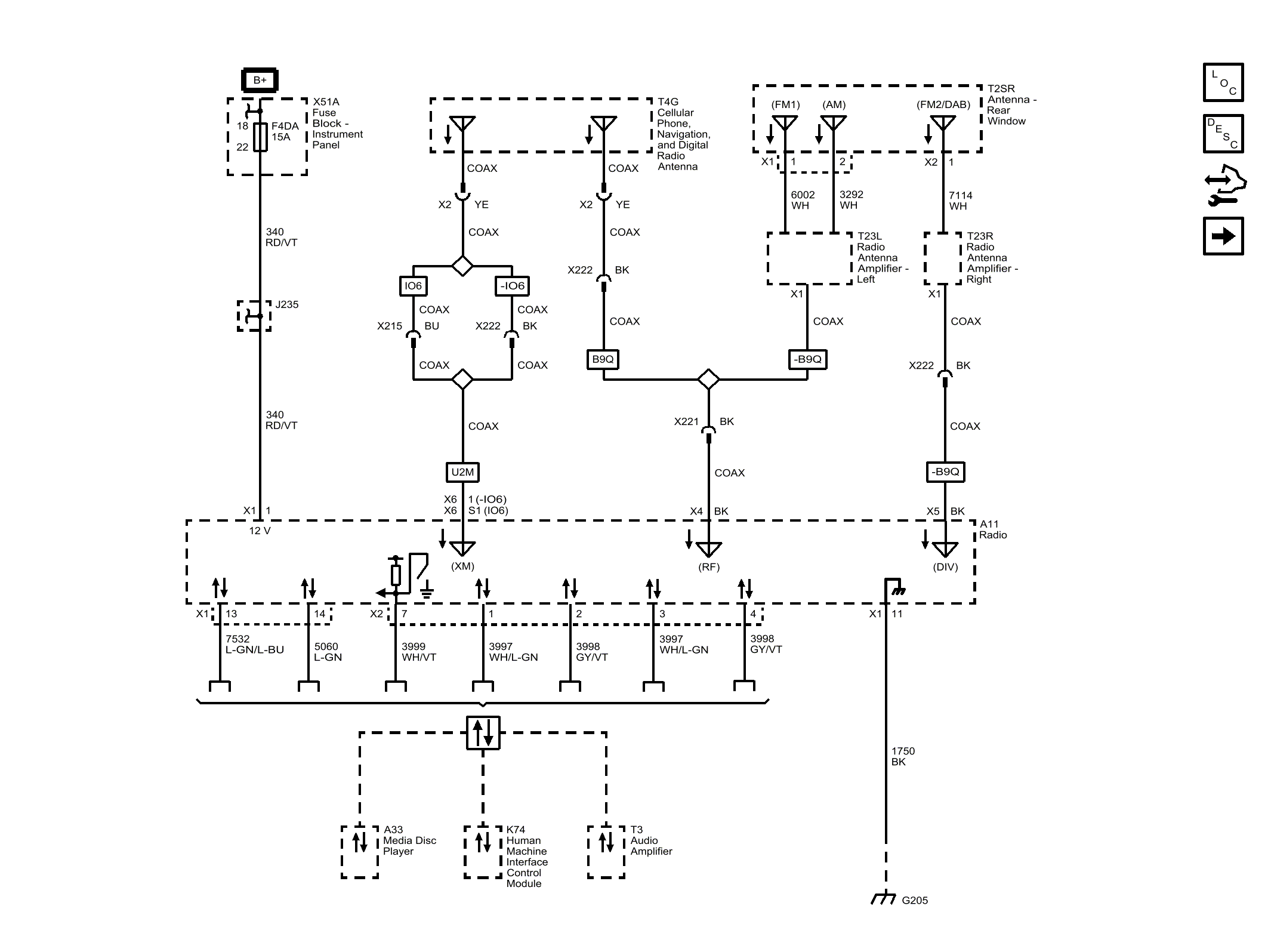

Fig 1: Power, Ground, Serial Data and Antennas
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
