Battery Positive Fuse Block Cable Replacement

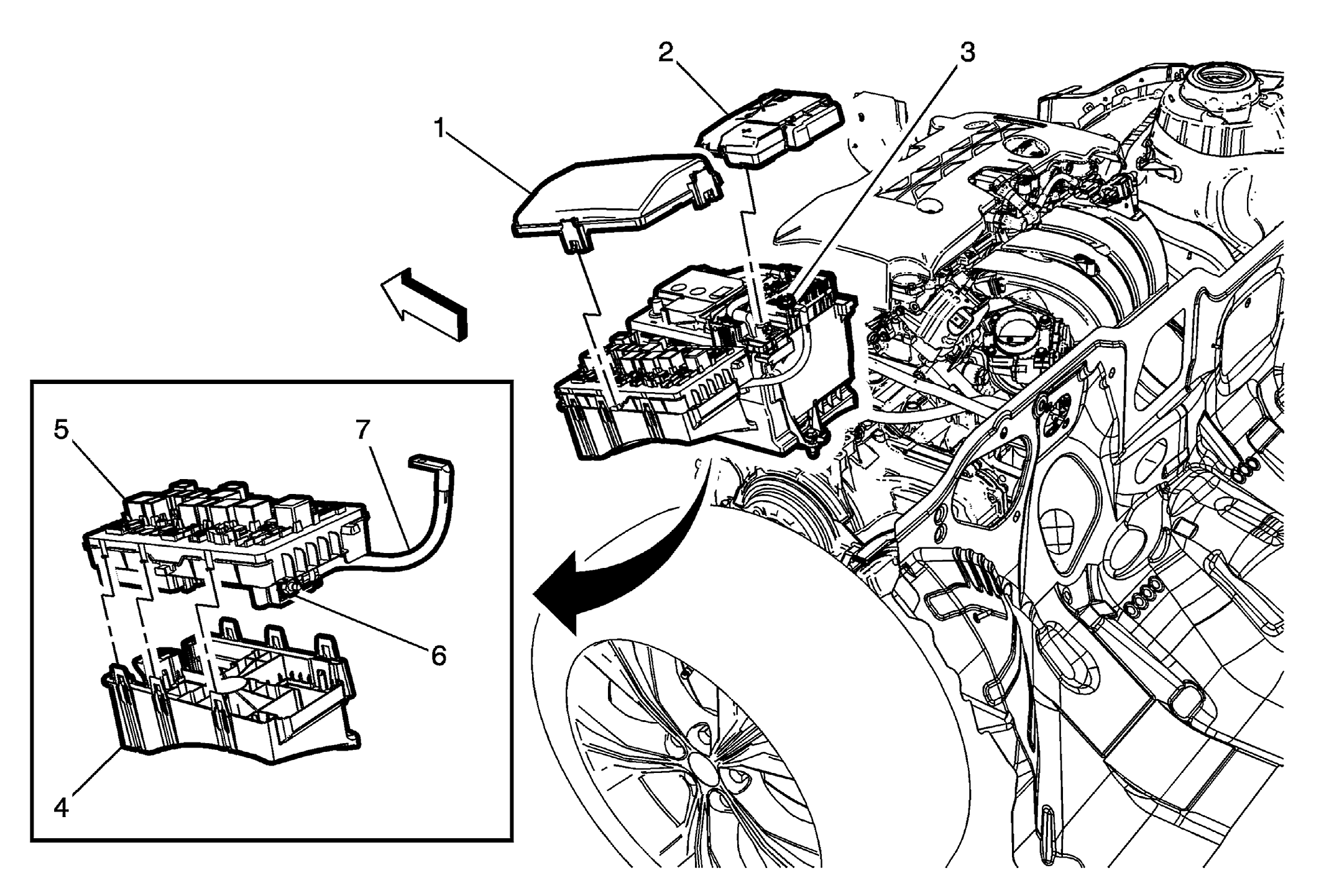

Fig 1: Battery Positive Fuse Block Cable & Components

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .
1	Accessory Wiring Junction Block Cover
2	Battery Fuse Block Cover
3	Battery Fuse Block Cable Fastener CAUTION: Refer to Fastener Caution . Tighten 12 N.m (106 lb in)
4	Accessory Wiring Junction Block Retainer Base
5	Accessory Wiring Junction Block
6	Accessory Wiring Junction Block Fastener Tighten 7 N.m (62 lb in)
7	Battery Positive Fuse Block Cable Procedure Remove the battery fuse block and the accessory wiring junction block covers. Detach the accessory wiring junction block (5) from the retainer base (4) with the 6 retaining tabs. Remove the fasteners securing the battery positive fuse block cable (7) from the battery fuse block and the accessory wiring junction block.
