Mass Airflow Sensor with Intake Air Temperature Sensor Replacement (Front LF3)

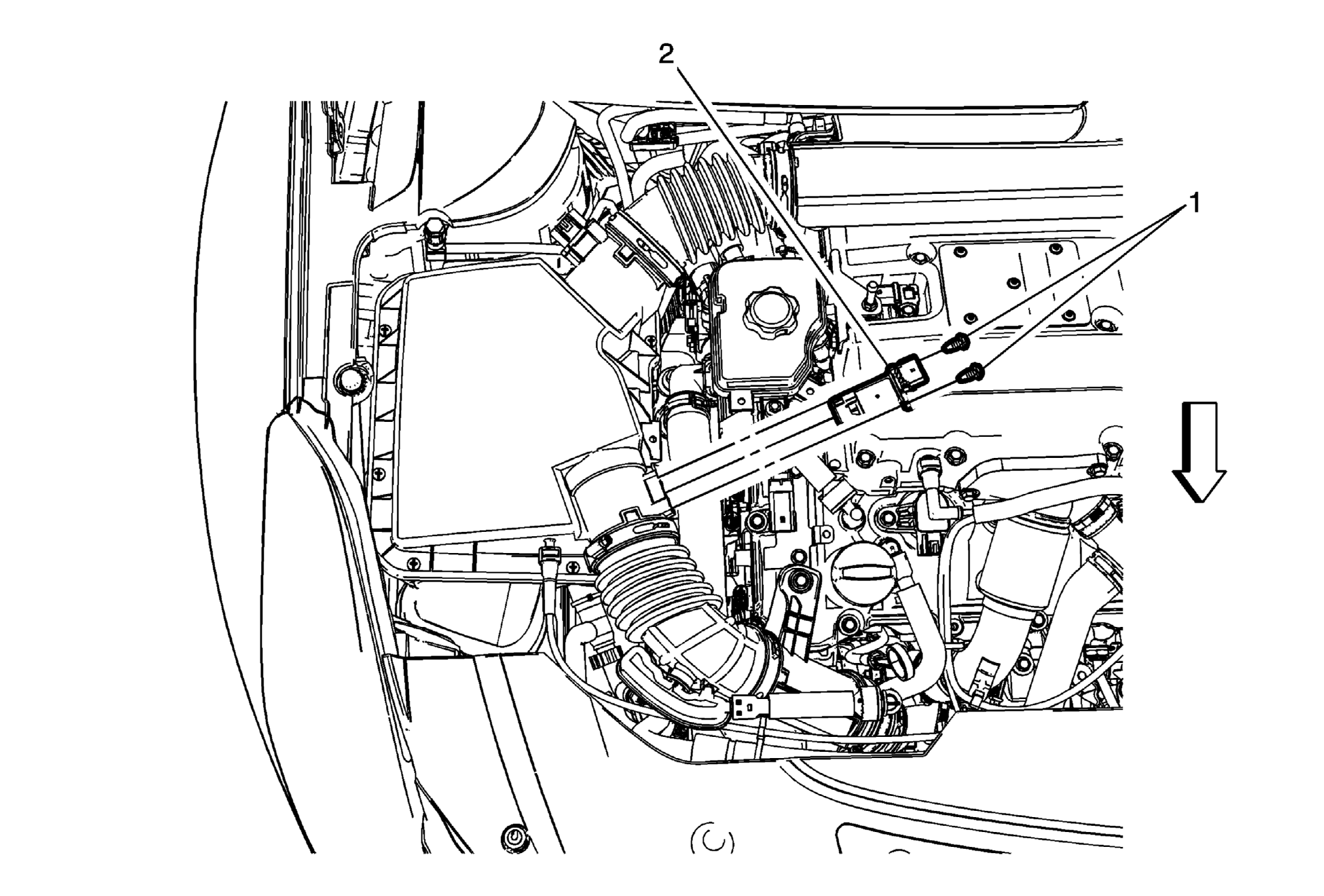

Fig 1: Mass Airflow Sensor with Intake Air Temperature Sensor (Front LF3)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Intake Manifold Cover Replacement (LF3)
1	Mass Air Flow Sensor Fasteners (Qty :2) CAUTION: Refer to Fastener Caution .
2	Mass Air Flow Sensor Procedure  Disconnect the electrical connector.
