Throttle Body Assembly Replacement (LF3)

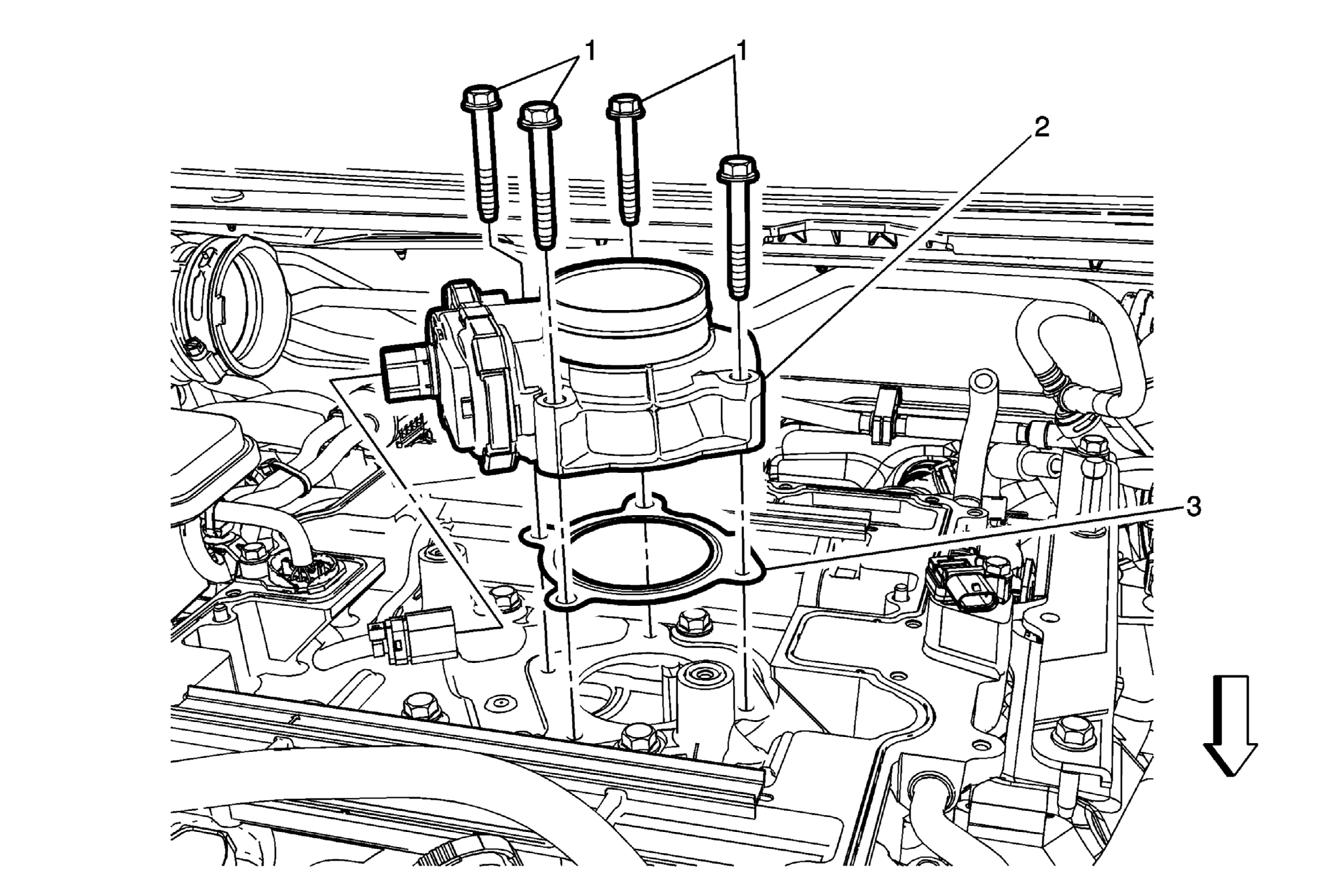

Fig 1: Throttle Body Assembly (LF3)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Charge Air Cooler Cover Replacement (LF3)
1	Throttle Body Bolt (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten 10 N.m (89 lb in)
2	Throttle Body Procedure Disconnect the electrical connector. Perform the throttle or idle learn. Throttle or Idle Learn
3	Throttle Body Gasket Procedure Install a NEW throttle body gasket.
