X51A Fuse Block - Instrument Panel Top View Fuses

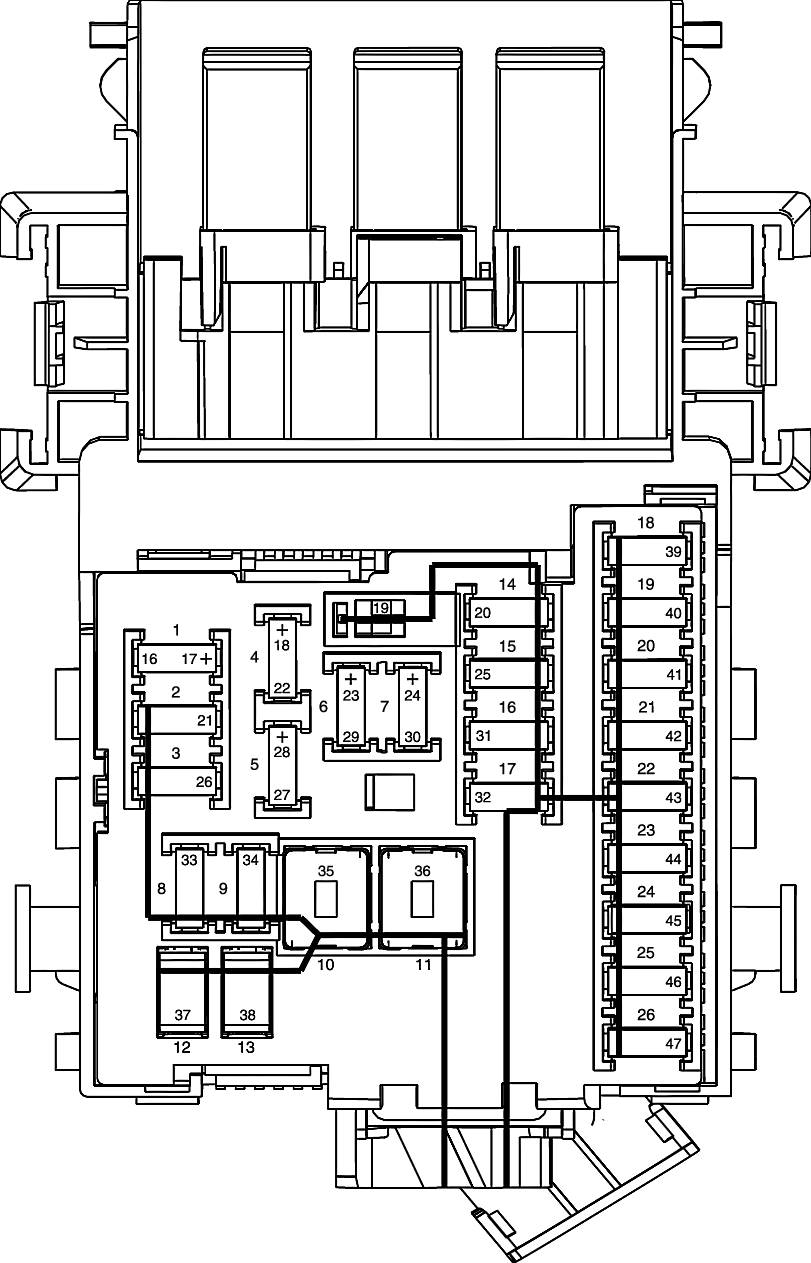

Fig 1: X51A Fuse Block - Instrument Panel Top View Fuses

Courtesy of GENERAL MOTORS COMPANY

X51A FUSE BLOCK - INSTRUMENT PANEL FUSE IDENTIFICATION LEGEND

No.	Device Label Name	Device Assigned Name	Rating	Description
Fuses
1	-	F1DA	10A	K73 Telematics Communication Interface Control Module
2	-	F2DA	10A	K9 Body Control Module
3	-	F3DA	15A	K9 Body Control Module
4	-	F4DA	15A	A11 Radio A33 Media Disc Player K48 Infotainment Faceplate Control Module X82 Audio/Video Input Adapter X83 Auxiliary Audio Input
5	-	F5DA	15A	A13 Rear Audio Control Module K73 Telematics Communication Interface Control Module P16 Instrument Cluster P17 Info Display Module P29 Head-Up Display
6	-	F6DA	20A	X80D Accessory Power Receptacle - Center Console Compartment X80G Accessory Power Receptacle - Instrument Panel
7	-	F7DA	20A	X80H Accessory Power Receptacle - Center Console X81 Accessory Power Outlet - 110V AC (K16)
8	-	F8DA	15A	K9 Body Control Module
9	-	F9DA	15A	K9 Body Control Module
10	-	F10DA	30A	K9 Body Control Module
11	-	F11DA	40A	K8 Blower Control Module
12	-	F12DA	25A	S64P Seat Adjuster Switch - Passenger
13	-	F13DA	25A	K40 Seat Memory Control Module (A45) S64D Seat Adjuster Switch - Driver (-A45)
14	-	F14DA	7.5A	X84 Data Link Connector
15	-	F15DA	10A	K36 Inflatable Restraint Sensing and Diagnostic Module
16	-	F16DA	10A	KR95B Rear Compartment Lid Unlatch Relay
17	-	F17DA	10A	K33 HVAC Control Module
18	-	F18DA	30A	F4DA F5DA
19	-	F19DA	10A	K60 Steering Column Lock Control Module
20	-	F20DA	5A	B60 Passenger Presence Sensor
21	-	F21DA	20A	K56 Serial Data Gateway Module
22	-	F22DA	2A	S48C Multifunction Switch 1 - Instrument Panel S48D Multifunction Switch 2 - Instrument Panel X85 Steering Wheel Air Bag Coil
23	-	F23DA	15A	K9 Body Control Module
24	-	F24DA	15A	K9 Body Control Module
25	-	F25DA	15A	K76 Steering Column Control Module
26	-	F26DA	30A	T1 Accessory AC/DC Power Inverter Module
