Rear and Right Side of Engine Components (LFX)

Items
1. X161 (LFX/LF3) X161 Engine Harness to Fuel Injector Harness
2. X160 X160 Engine Harness to Fuel Injector Harness (LFX/LF3)
3. T8E Ignition Coil 5 T8E Ignition Coil 5 (LFX/LF3)
4. T8C Ignition Coil 3 T8C Ignition Coil 3 (LFX/LF3)
5. B74 Manifold Absolute Pressure Sensor B74 Manifold Absolute Pressure Sensor (LFX)
6. Q12 Evaporative Emission Purge Solenoid Valve Q12 Evaporative Emission Purge Solenoid Valve (LFX)
7. Q38 Throttle Body Q38 Throttle Body
8. B23B Camshaft Position Sensor - Bank 1 Intake (LFX/LF3) B23B Camshaft Position Sensor - Bank 1 Intake
9. B23A Camshaft Position Sensor - Bank 1 Exhaust (LFX/LF3) B23A Camshaft Position Sensor - Bank 1 Exhaust
10. Q6B Camshaft Position Actuator Solenoid Valve - Bank 1 Intake Q6B Camshaft Position Actuator Solenoid Valve - Bank 1 Intake
11. B23A Camshaft Position Sensor - Bank 1 Exhaust (LFX/LF3) B23A Camshaft Position Sensor - Bank 1 Exhaust
12. B52D Heated Oxygen Sensor - Bank 1 Sensor 2 (LFX/LF3) B52D Heated Oxygen Sensor - Bank 1 Sensor 2 (LFX/LF3)
13. T8A Ignition Coil 1 T8A Ignition Coil 1 (LFX/LF3)
14. B68A Knock Sensor 1 B68A Knock Sensor 1
15. B26 Crankshaft Position Sensor B26 Crankshaft Position Sensor (LFX)
16. B52C Heated Oxygen Sensor - Bank 1 Sensor 1 (LFX/LF3) B52C Heated Oxygen Sensor - Bank 1 Sensor 1 (LFX/LF3)

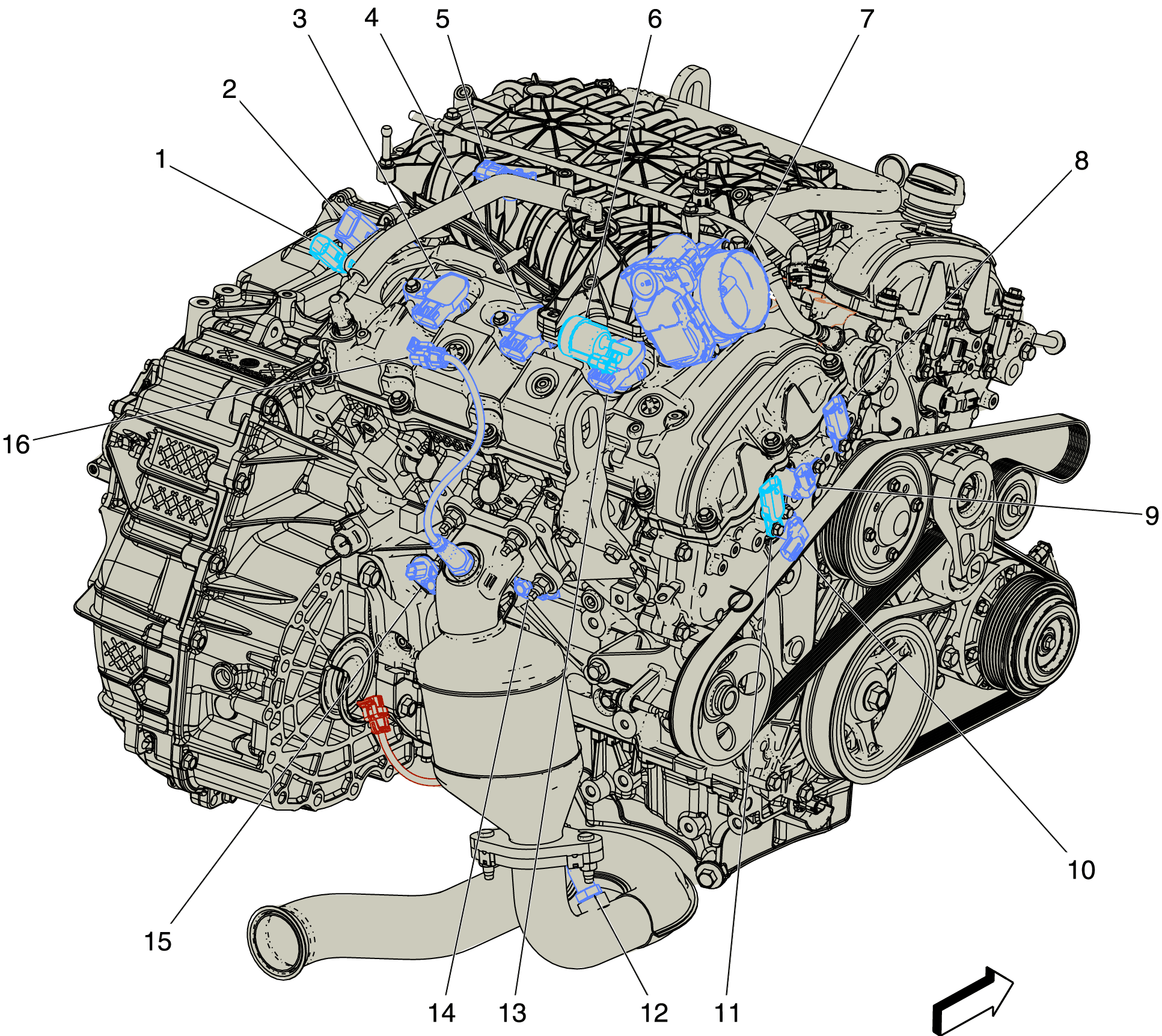

Fig 1: Rear and Right Side of Engine Components (LFX)

Courtesy of GENERAL MOTORS COMPANY
