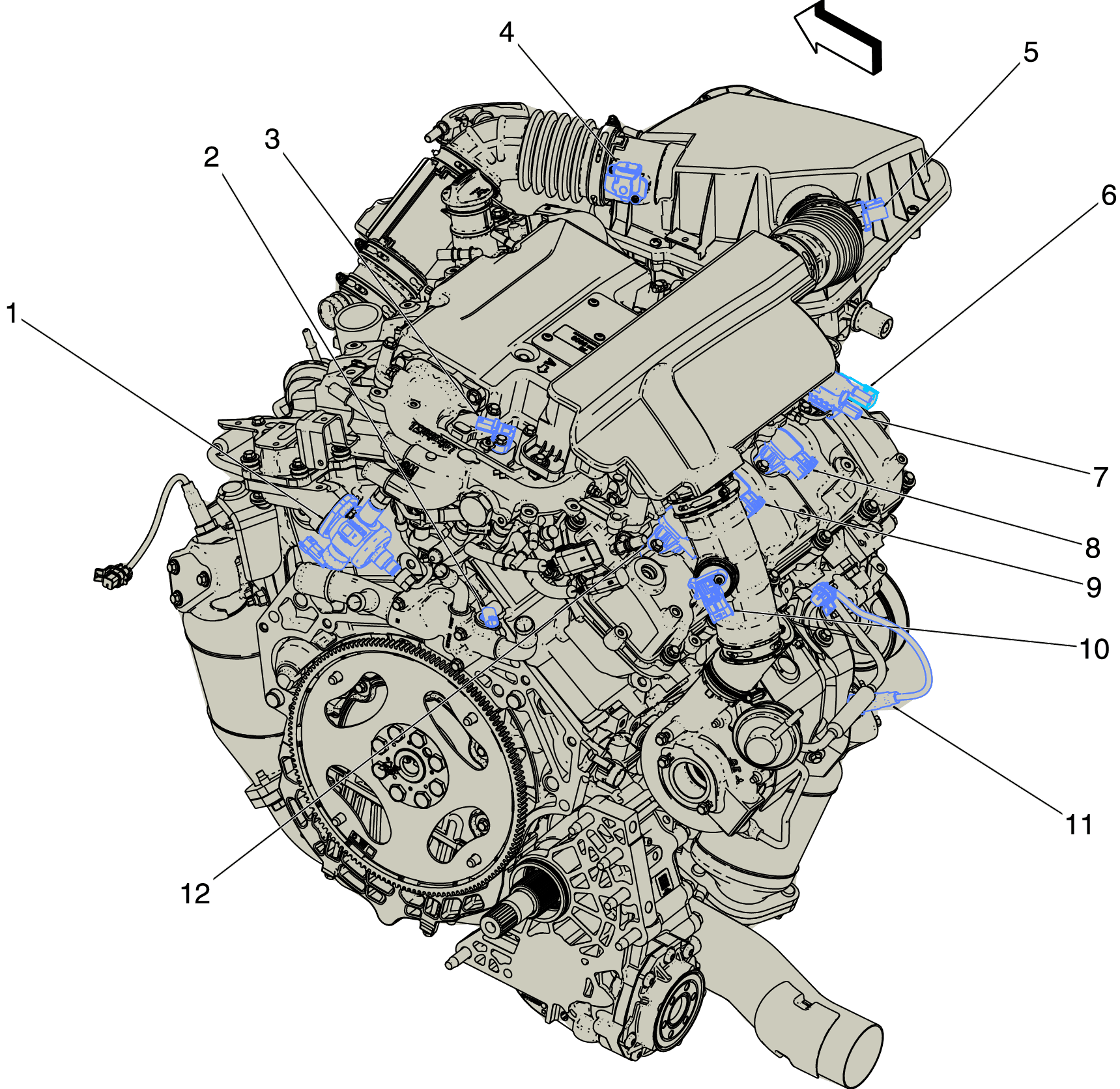

Right Rear of Engine Components (LF3)
Right Rear of Engine Components (LF3)
| Items |
|---|
| 1. G18 High Pressure Fuel Pump G18 High Pressure Fuel Pump (LFX/LF3) |
| 2. B34 Engine Coolant Temperature Sensor B34 Engine Coolant Temperature Sensor (LTG/LF3) |
| 3. B74 Manifold Absolute Pressure Sensor B74 Manifold Absolute Pressure Sensor (LF3) |
| 4. B75C Multifunction Intake Air Sensor (LFX/LF3/LTG) B75C Multifunction Intake Air Sensor (LF3/LTG) |
| 5. B75B Mass Air Flow/Intake Air Temperature Sensor (LF3) B75B Mass Air Flow/Intake Air Temperature Sensor |
| 6. B23A Camshaft Position Sensor - Bank 1 Exhaust (LFX/LF3) B23A Camshaft Position Sensor - Bank 1 Exhaust |
| 7. Q12 Evaporative Emission Purge Solenoid Valve Q12 Evaporative Emission Purge Solenoid Valve (LF3) |
| 8. T8A Ignition Coil 1 T8A Ignition Coil 1 (LFX/LF3) |
| 9. T8C Ignition Coil 3 T8C Ignition Coil 3 (LFX/LF3) |
| 10. B192 Throttle Inlet Absolute Pressure Sensor (LF3) B192 Throttle Inlet Absolute Pressure Sensor |
| 11. B52C Heated Oxygen Sensor - Bank 1 Sensor 1 (LFX/LF3) B52C Heated Oxygen Sensor - Bank 1 Sensor 1 (LFX/LF3) |
| 12. T8E Ignition Coil 5 T8E Ignition Coil 5 (LFX/LF3) |
