Preliminary Procedures
- Remove Steering Linkage Outer Tie Rod. Refer to Steering Linkage Outer Tie Rod Replacement
- If servicing the right side steering gear boot, remove the steering gear heat shield. Refer to Steering Gear Heat Shield Replacement (NJ2)
|

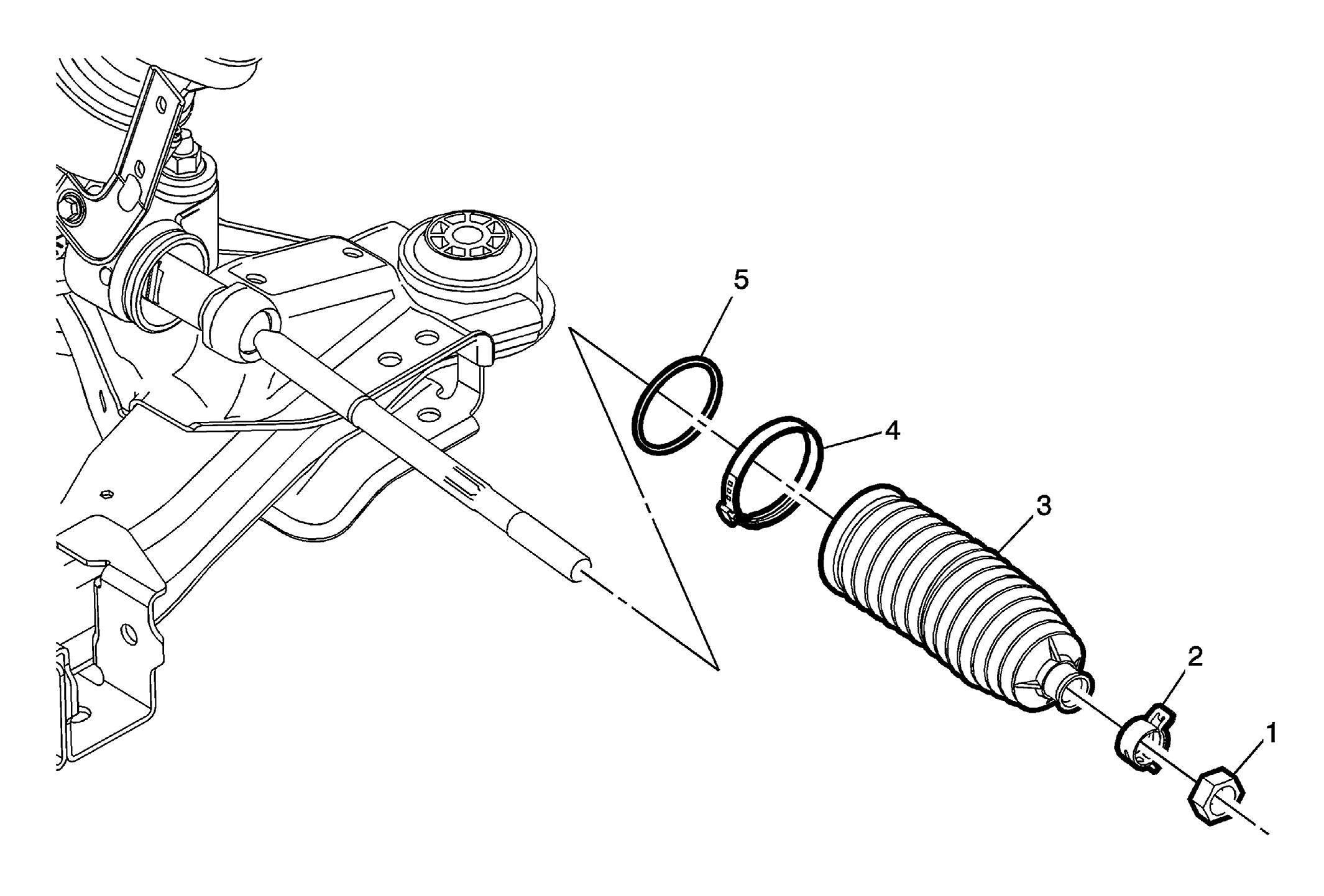

| 1 |
Steering Linkage Inner Tie Rod Nut
Procedure
Place match marks on the steering linkage inner tie rod nut and the steering linkage inner tie rod. |
| 2 |
Steering Gear Boot Outer Clamp |
| 3 |
Steering Gear Boot Inner Clamp Procedure
- Cut the steering gear boot inner clamp.
DISCARD the clamp.
- Use the CH-22610
pliers to install the NEW steering gear boot inner clamp.
Special Tools
CH-22610
Pliers
Equivalent regional tools: Special Tools |
| 4 |
Steering Gear Boot Procedure
- After removing the steering gear boot, inspect the steering linkage inner tie rod for evidence of corrosion or contamination. If corrosion or contamination is evident, replace the steering gear. Refer to Electric Belt Drive Rack and Pinion Steering Gear Replacement (FWD, LFX, NJ2)
- Install the steering gear boot and ensure the boot is seated in the assembly groove of the steering gear before installing the steering gear boot clamps.
|
| 5 |
Steering Gear Boot Inner Seal
Procedure
Apply a small amount of Lithium Grease or equivalent to the inside of both ends of the steering gear boot. Refer to Adhesives, Fluids, Lubricants, and Sealers |
