Ignition and Start Switch Replacement

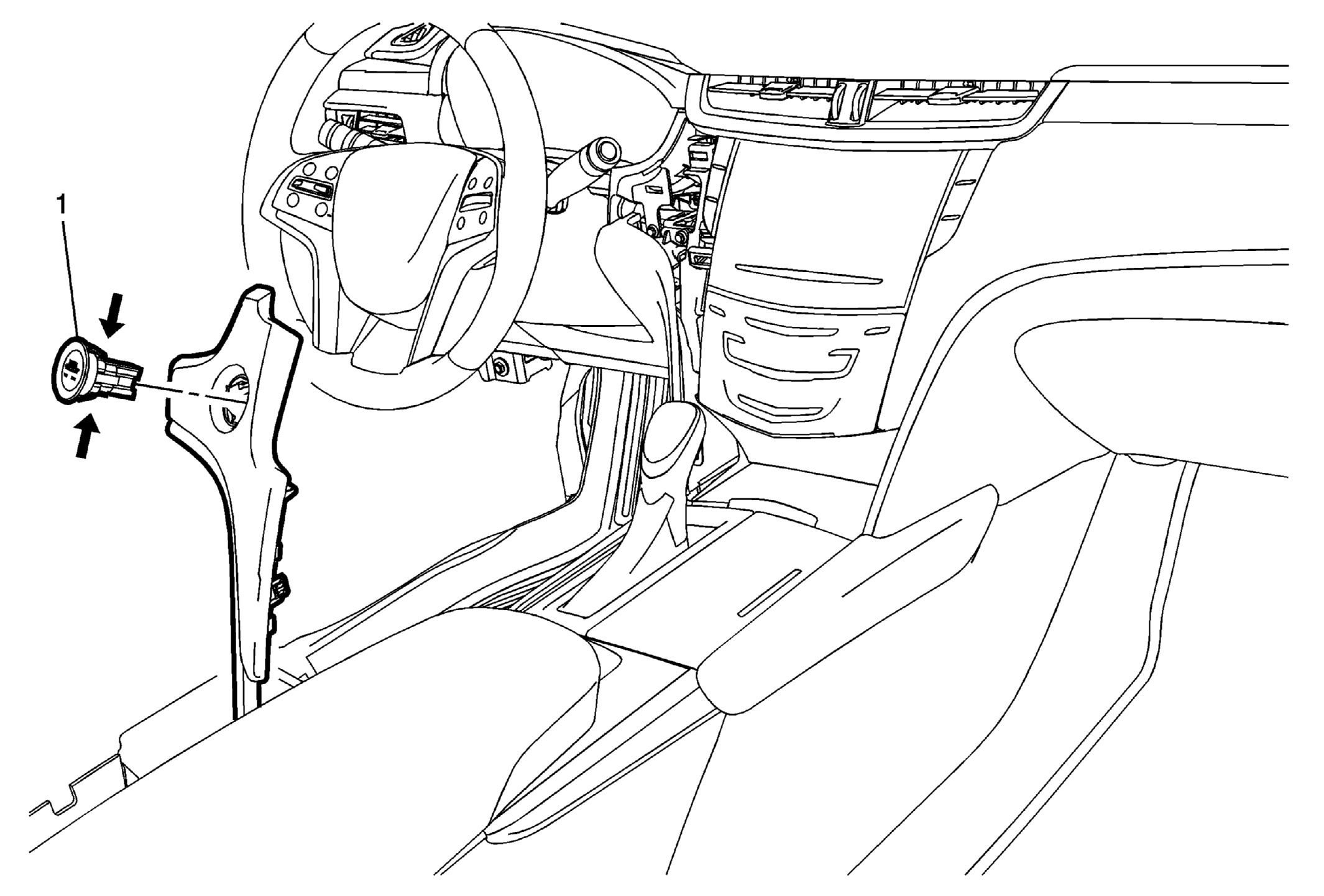

Fig 1: Ignition & Start Switch
GM2753827Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the instrument panel trim center panel. Refer to Instrument Panel Trim Panel Replacement - Center .
1 Ignition and Start Switch

Procedure

  1. Disconnect electrical connection.
  2. Depress tabs on switch and remove from the panel.
