Communication Interface Module Bracket Replacement (Coupe)

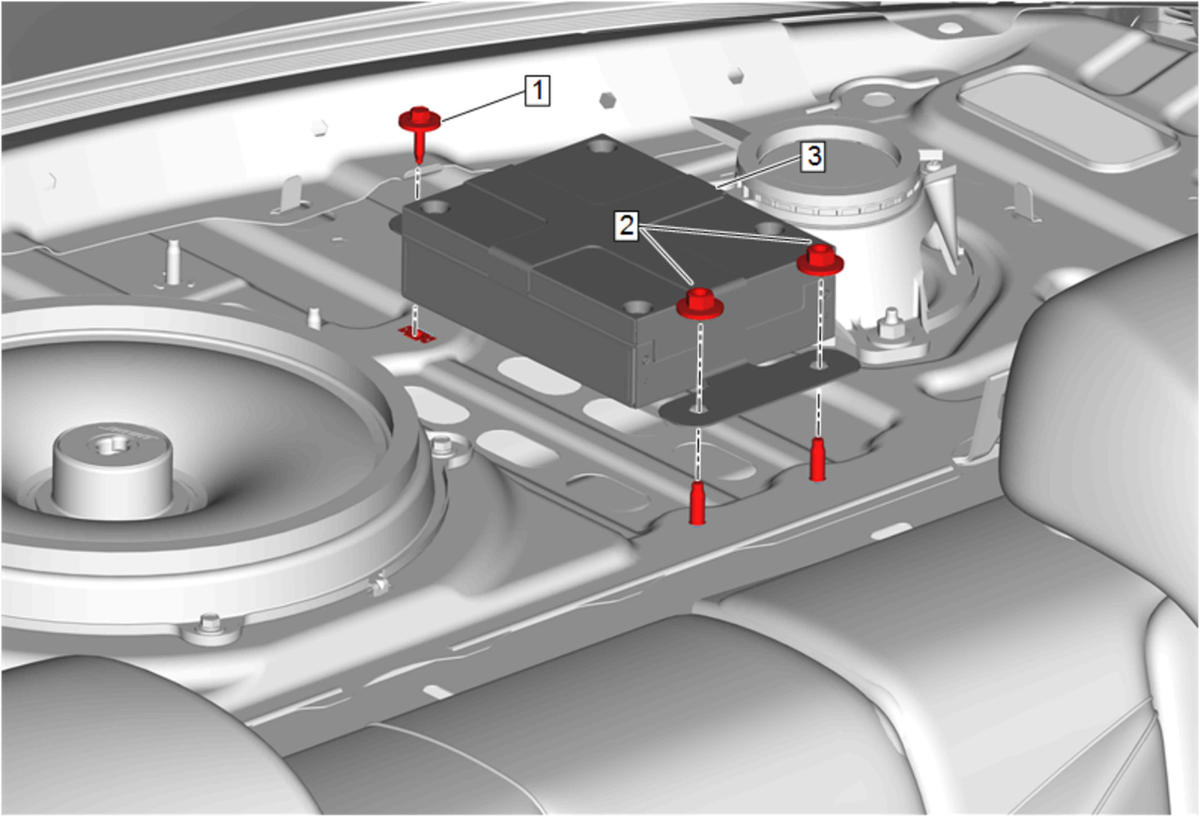

| Callout | Component Name |
|---|---|
| Preliminary Procedure Rear Window Panel Trim Replacement (Coupe) |
|
| 1 | Communication Interface Module Bracket Bolt
CAUTION:
Tighten 2.5 N.m (22 lb in) |
| 2 | Communication Interface Module Bracket Nut[2x] Tighten 6 N.m (53 lb in) |
| 3 | Communication Interface Module Bracket Procedure
|
