Rain Sense Mode and Rain Sense Indicator

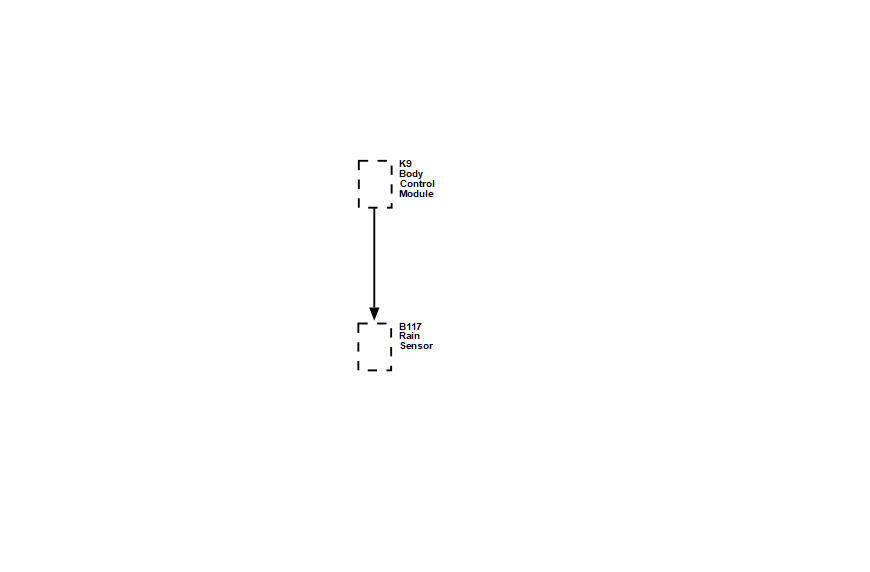

The rain sensor communicates with the body control module (BCM) via serial data. When the ignition is in the ON or ACCESSORY position and the windshield wiper/washer switch is in the intermittent delay position, the BCM monitors the rain sensor data to determine the rain build up on the windshield. As rain builds up on the windshield, the BCM will command the wipers to activate. The sensitivity of the wiper frequency is controlled by the intermittent delay of the windshield wiper/washer switch. As the sensitivity is increased, the BCM will command more frequent wiper activation based on rain build up on the windshield.

Courtesy of GENERAL MOTORS COMPANY
