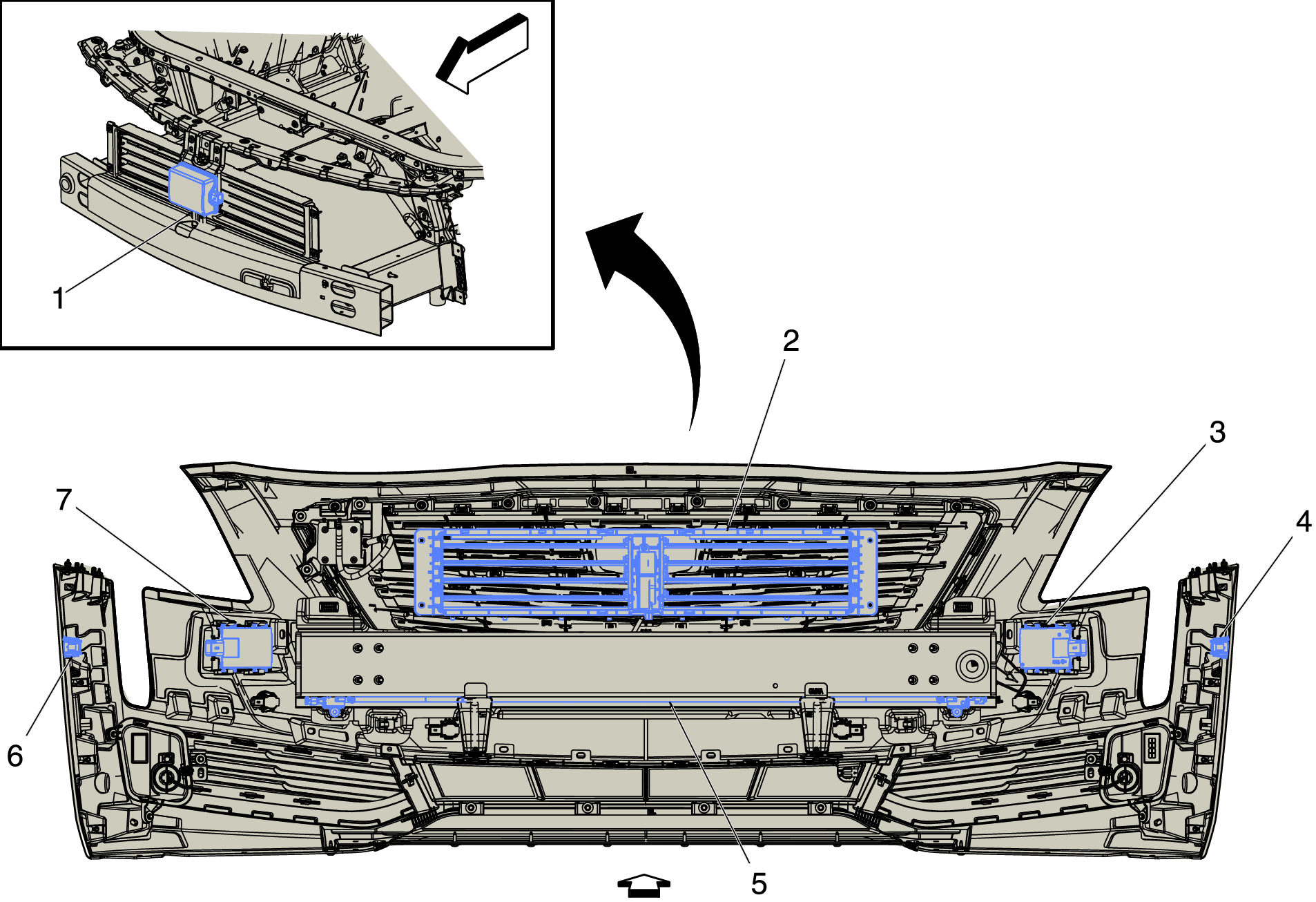

Front of Vehicle Components - Behind Front Fascia

Courtesy of GENERAL MOTORS COMPANY

Front of Vehicle Components - Behind Front Fascia

Items
1. B233B Radar Sensor Module - Long Range (UGN/UVZ) B233B Radar Sensor Module - Long Range (-UKL-HP9)B233B Radar Sensor Module - Long Range (HP9)B233B Radar Sensor Module - Long Range (UKL-HP9)
2. M96A Active Grille Air Shutter 1 Actuator M96A Active Grille Air Shutter 1 Actuator
3. B233RF Radar Sensor Module - Short Range Right Front (UGN/UVZ) B233RF Radar Sensor Module - Short Range Right Front (UGN)B233RF Radar Sensor Module - Short Range Right Front (UKL)
4. B166RF Advanced Parking Assist Side Object Sensor - Right Front (UFQ) B166RF Advanced Parking Assist Side Object Sensor - Right Front
5. B82F Pedestrian Impact Detection Sensor - Upper Beam Front (B3T) B82F Pedestrian Impact Detection Sensor - Upper Beam Front X1 (B3T)
6. B166LF Advanced Parking Assist Side Object Sensor - Left Front (UFQ) B166LF Advanced Parking Assist Side Object Sensor - Left Front
7. B233LF Radar Sensor Module - Short Range Left Front (UGN/UVZ) B233LF Radar Sensor Module - Short Range Left Front (UGN)B233LF Radar Sensor Module - Short Range Left Front (UKL)
