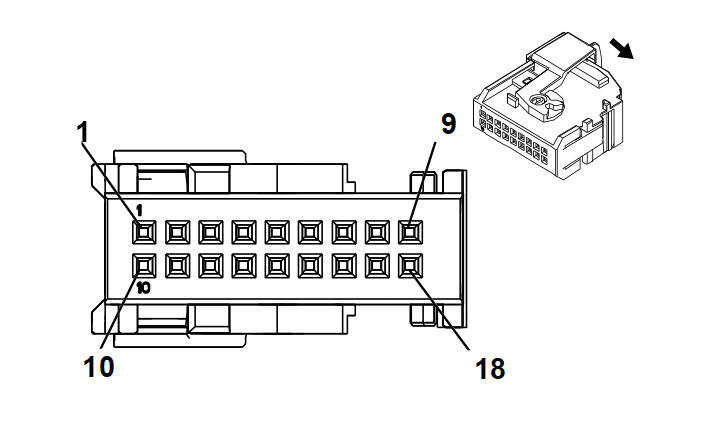

K179 Digital Map Control Module
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: Body
- OEM Connector: 33168840
- Service Connector: 19369840
- Description: 18-Way F Micro-Quadlock Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
13575587 |
J-35616-64B (LT BU) |
J-38125-12A |
Not Available |
Not Available |
Not Available |
Not Available |
| II |
13575859 |
J-35616-64B (LT BU) |
J-38125-12A |
Not Available |
Not Available |
Not Available |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
WH |
3811 |
High Speed GMLAN Serial Data (-) 4 |
II |
- |
| 2 |
0.5 |
BU/VT |
3813 |
High Speed GMLAN Serial Data (+) 4 |
II |
- |
| 3 - 9 |
- |
- |
- |
Not Occupied |
- |
- |
| 10 |
0.5 |
WH |
3811 |
High Speed GMLAN Serial Data (-) 4 |
II |
- |
| 11 |
0.5 |
BU/VT |
3813 |
High Speed GMLAN Serial Data (+) 4 |
II |
- |
| 12 |
0.75 |
BK |
2450 |
Ground |
II |
- |
| 13 |
0.35 |
BN/VT |
3809 |
Front Object Sensor Control 1 |
I |
- |
| 14 |
- |
- |
- |
Not Occupied |
- |
- |
| 15 |
0.35 |
RD/WH |
8040 |
Battery Positive Voltage |
I |
- |
| 16 - 18 |
- |
- |
- |
Not Occupied |
- |
- |
