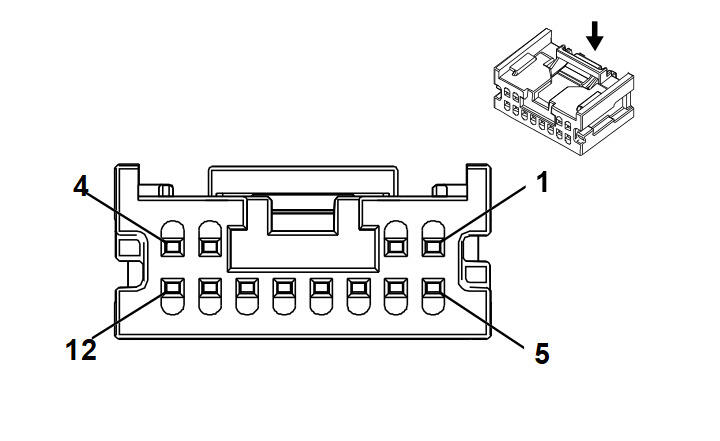

K180 Driver Monitoring System Control Module X1
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: Instrument Panel
- OEM Connector: 33235297
- Service Connector: 13507121
- Description: 12-Way F Mini 50 Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
19333221 |
EL-35616-58 (BK) |
J-38125-553 |
Not Available |
Not Available |
Not Available |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.35 |
RD/GN |
8440 |
Battery Positive Voltage |
I |
- |
| 2 |
0.35 |
BK |
1350 |
Ground |
I |
- |
| 3 |
0.35 |
BU/VT |
3813 |
High Speed GMLAN Serial Data (+) 4 |
I |
- |
| 4 |
0.35 |
WH |
3811 |
High Speed GMLAN Serial Data (-) 4 |
I |
- |
| 5 - 6 |
- |
- |
- |
Not Occupied |
- |
- |
| 7 |
0.35 |
BK/BU |
2244 |
Driver Illumination Lamp Supply Voltage |
I |
- |
| 8 |
0.35 |
YE/BU |
2245 |
Driver Illumination Lamp #2 Control |
I |
- |
| 9 |
0.35 |
WH/VT |
2246 |
Driver Illumination Lamp #1 Control |
I |
- |
| 10 |
0.35 |
BN/VT |
3809 |
Front Object Sensor Control 1 |
I |
- |
| 11 |
0.35 |
BU/VT |
3813 |
High Speed GMLAN Serial Data (+) 4 |
I |
- |
| 12 |
0.35 |
WH |
3811 |
High Speed GMLAN Serial Data (-) 4 |
I |
- |
