Installation Procedure

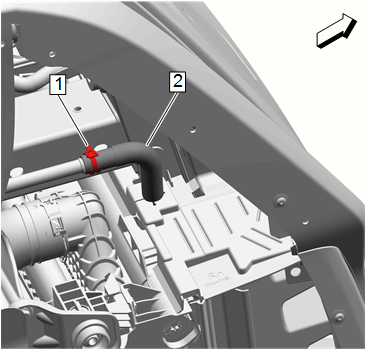

Drive Motor Control Module Radiator Outlet Hose (2)@Drive Motor Power Inverter Module Coolant Outlet Pipe - Install
- Drive Motor Control Module Radiator Outlet Hose Clamp (1) - Engage - Hose Clamp Replacement Guidelines - Spring Type
Drive Motor Control Module Radiator Outlet Hose (2)@Auxiliary Radiator - Install
- Drive Motor Control Module Radiator Outlet Hose Clamp (1) - Engage - Hose Clamp Replacement Guidelines - Spring Type
Front Tire Front Air Deflector-Right Side (2) - Install - Front Tire Front Air Deflector Replacement
Front Bumper Fascia Lower Stiffener (3) - Install - Front Bumper Fascia Lower Stiffener Replacement
- Fill the power electronics and auxiliary radiator cooling system. Power Electronics and Auxiliary Radiator Drain and Fill (LTG HP9)
- Enable the high voltage system. High Voltage Enabling
- Start the engine and check for coolant leaks.
