Installation Procedure

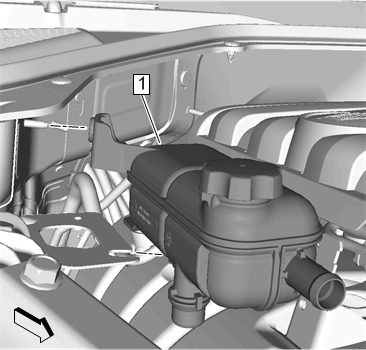

Generator Control Module Coolant/Air Separator (1)@Generator Control Module Coolant Radiator Bracket - Install
- CAUTION:
Refer to Fastener Caution .

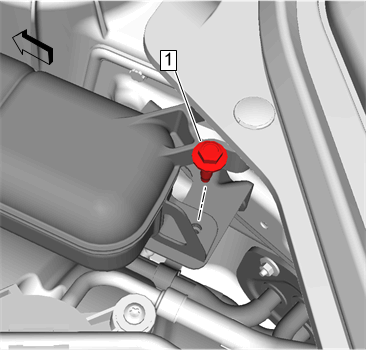

Generator Control Module Coolant/Air Separator Bolt (1)@Generator Control Module Coolant/Air Separator - Install and tighten 9 N.m (80 lb in)
Drive Motor Generator Control Module Coolant Pump Hose (2)@Generator Control Module Coolant/Air Separator - Install
- Retainer (1)@Drive Motor Generator Control Module Coolant Pump Hose (2) - Engage

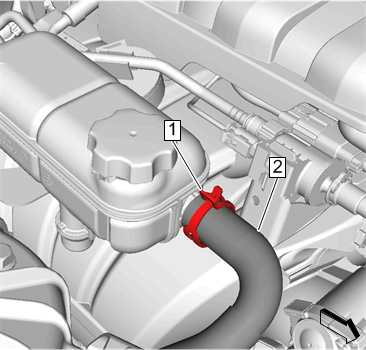

Generator Control Module Coolant Tank Hose (2)@Generator Control Module Coolant/Air Separator - Install
- Generator Control Module Coolant Tank Hose Clamp (1) - Engage - Hose Clamp Replacement Guidelines - Spring Type
- Fill the power electronics and auxiliary radiator cooling system. Power Electronics and Auxiliary Radiator Drain and Fill (LTG HP9)
- Enable the high voltage system. High Voltage Enabling
- Start the engine and check for coolant leaks.
