Engine Components - Right Rear (LGW)

GM4223650Courtesy of GENERAL MOTORS COMPANY

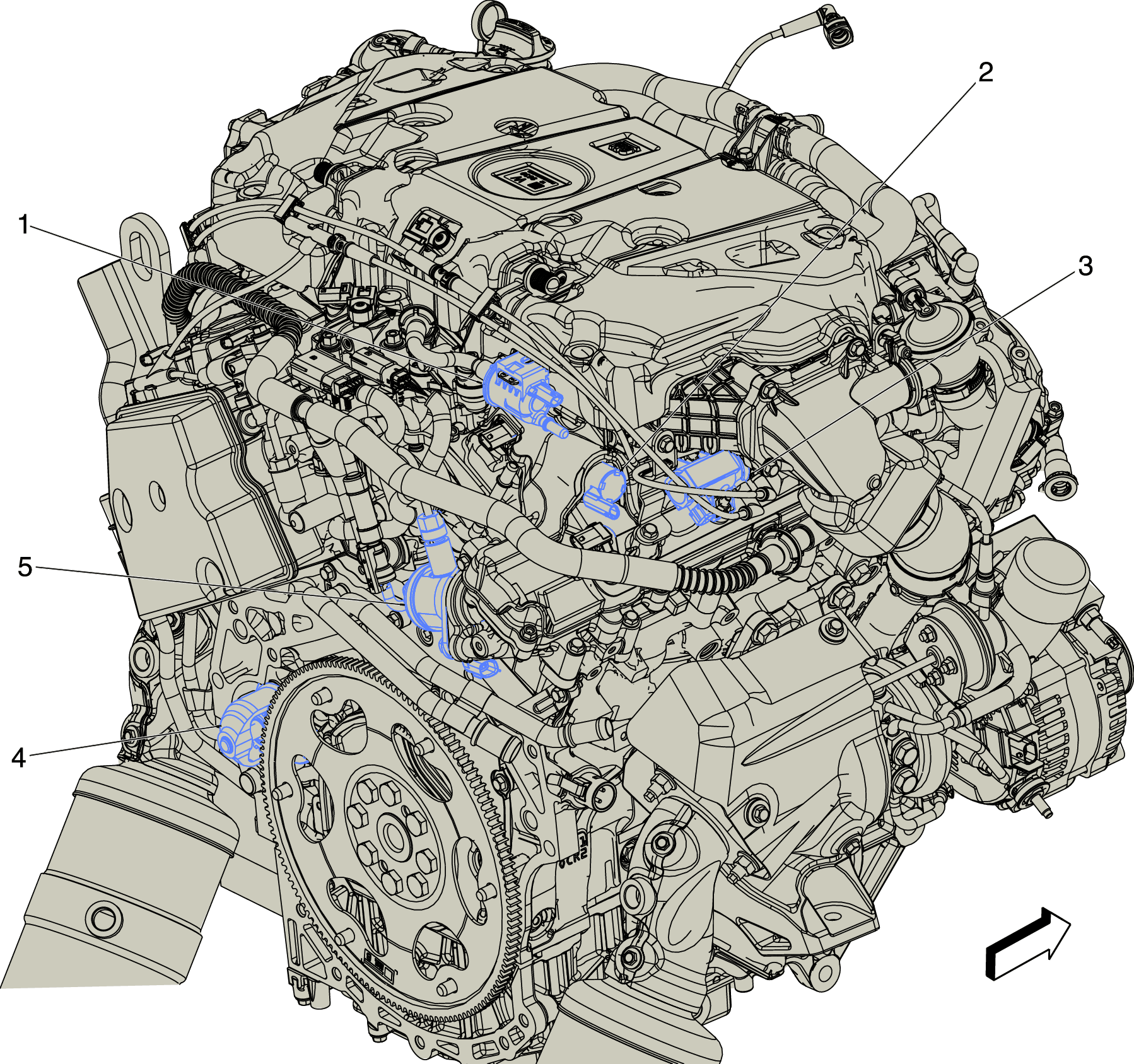

Engine Components - Right Rear (LGW)

Items
1. Q12 Evaporative Emission Purge Solenoid Valve Q12 Evaporative Emission Purge Solenoid Valve
2. Q83A Valve Lifter Oil Solenoid Valve - Bank 1 (LGW/LGX) Q83A Valve Lifter Oil Solenoid Valve - Bank 1
3. Q42A Turbocharger 1 Wastegate Solenoid Valve (LGW) Q42A Turbocharger 1 Wastegate Solenoid Valve
4. M64 Starter Motor M64 Starter Motor X1
5. G18 High Pressure Fuel Pump G18 High Pressure Fuel Pump (LGX/LGW)
