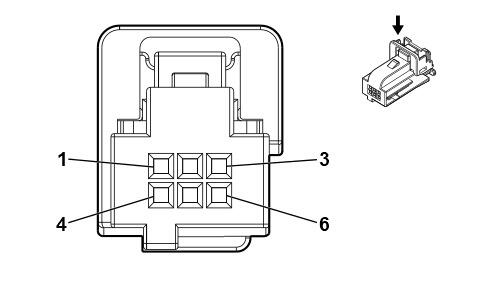

B10B Ambient Light/Sunload Sensor
Connector Part Information
|
Terminal Part Information
| Terminal Type ID | Terminated Lead | Diagnostic Test Probe | Terminal Removal Tool | Service Terminal | Tray Name | Core Crimp | Insulation Crimp |
|---|---|---|---|---|---|---|---|
| I | Not Required | J-35616-64B (LT BU) | No Tool Required | Not Required | Not Required | Not Required | Not Required |
| Pin | Size | Color | Circuit | Function | Terminal Type ID | Option |
|---|---|---|---|---|---|---|
| 1 | 0.35 0.13 |
BK GY |
1350 590 |
Ground Solar Sensor Driver Signal |
I I |
HP9 -HP9 |
| 2 | 0.35 | GN/WH | 4115 | Local Interconnect Network Serial Data Bus 15 | I | - |
| 3 | 0.35 0.13 |
YE/VT WH |
3956 278 |
Charging Status Indicator Control Ambient Light Sensor Signal |
I I |
HP9 -HP9 |
| 4 | 0.35 0.13 |
GY/GN BU |
3957 734 |
Charging Pilot Signal Indicator Control Inside Air Temperature Sensor Signal |
I I |
HP9 -HP9 |
| 5 | 0.35 0.13 |
RD/VT GY |
3340 728 |
Battery Positive Voltage Security Indicator Control |
I I |
HP9 -HP9 |
| 6 | 0.35 0.13 |
BK GN |
1350 7567 |
Ground Solar Sensor Low Reference |
I I |
HP9 -HP9 |
