C5A Hybrid/EV Battery Module 1 (HP9)
 Courtesy of GENERAL MOTORS COMPANY
|

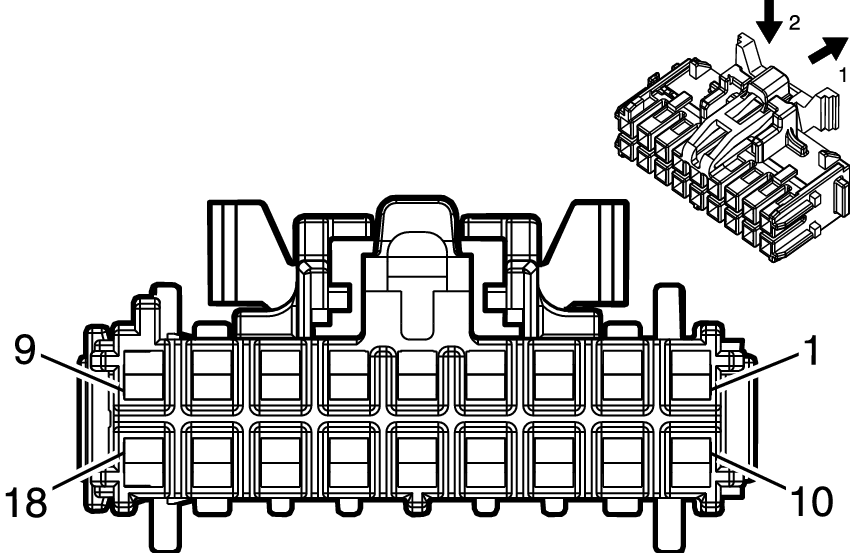

Connector Part Information
- Harness Type: Energy Storage
- OEM Connector: 10175193
- Service Connector: Service by Harness - See Part Catalog
- Description: 18-Way F 1.2 Multilock Series (OG)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-16 (LT GN) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.35 |
BK/VT |
5403 |
Battery Pack Monitor Low Reference |
I |
- |
| 2 |
0.35 |
YE/VT |
5394 |
Battery Voltage Signal 2 |
I |
- |
| 3 |
0.35 |
GY/YE |
5396 |
Battery Voltage Signal 4 |
I |
- |
| 4 |
0.35 |
GN |
5398 |
Battery Voltage Signal 6 |
I |
- |
| 5 |
0.35 |
BU |
5400 |
Battery Voltage Signal 8 |
I |
- |
| 6 |
0.35 |
BU/GY |
5392 |
Battery Voltage Signal 10 |
I |
- |
| 7 |
0.35 |
BN |
5571 |
Battery Voltage Signal 12 |
I |
HP9 |
| 8 |
0.35 |
YE |
5573 |
Battery Voltage Signal 14 |
I |
- |
| 9 |
0.35 |
BN/WH |
5575 |
Battery Voltage Signal 16 |
I |
- |
| 10 |
0.35 |
VT |
5391 |
Battery Voltage Signal 1 |
I |
- |
| 11 |
0.35 |
WH |
5395 |
Battery Voltage Signal 3 |
I |
- |
| 12 |
0.35 |
WH |
5397 |
Battery Voltage Signal 5 |
I |
- |
| 13 |
0.35 |
YE/BN |
5399 |
Battery Voltage Signal 7 |
I |
- |
| 14 |
0.35 |
GN/BK |
5401 |
Battery Voltage Signal 9 |
I |
- |
| 15 |
0.35 |
GN/GY |
5393 |
Battery Voltage Signal 11 |
I |
C24 |
| 16 |
0.35 |
YE/GY |
5572 |
Battery Voltage Signal 13 |
I |
- |
| 17 |
0.35 |
WH/BK |
5574 |
Battery Voltage Signal 15 |
I |
- |
| 18 |
- |
- |
- |
Not Occupied |
- |
- |
