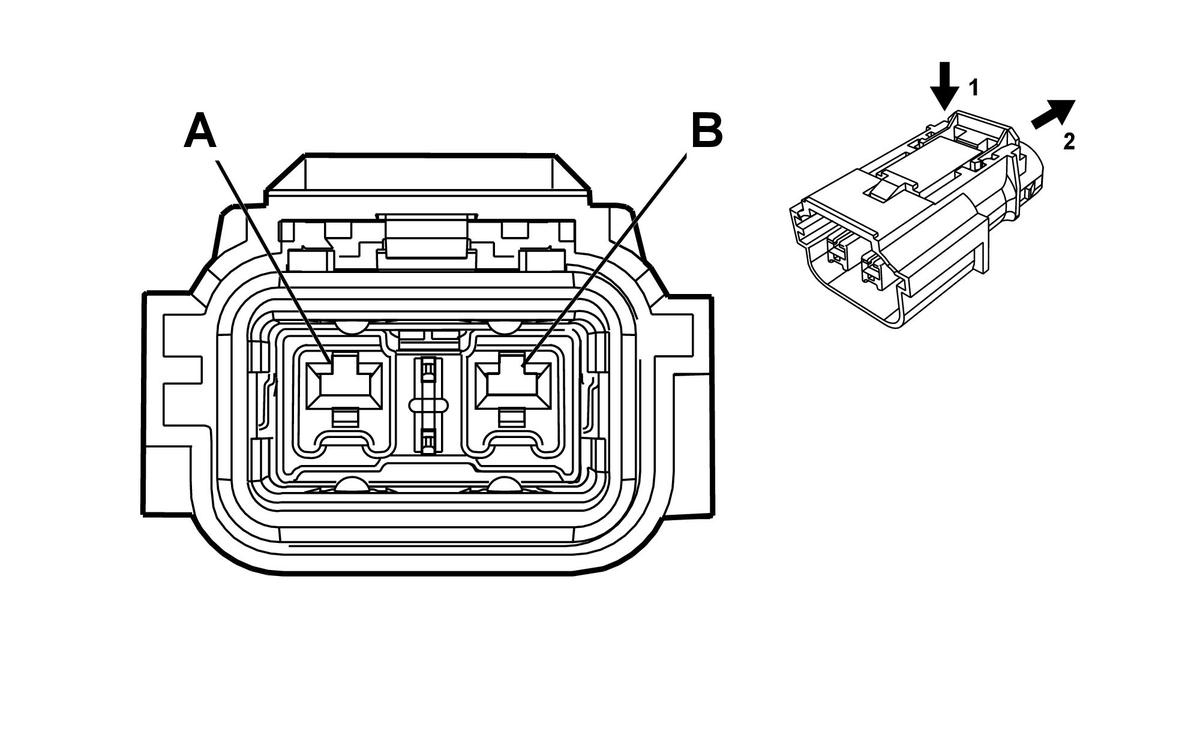

K1 14V Power Module X1 (HP9)
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: APM Jumper
- OEM Connector: 13593391
- Service Connector: Service by Harness - See Part Catalog
- Description: 4-Way F/M 0.8, 2.8 Metri-Pack Series, Sealed (BU)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
Not Available |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 - 2 |
- |
- |
- |
Not Occupied |
- |
- |
| A |
- |
OG/BK |
3833 |
High Voltage Battery 2 (-) |
I |
- |
| B |
- |
OG/ |
3834 |
High Voltage Battery 2 (+) |
I |
- |
