K177 Brake Booster Control Module (HP9)

Courtesy of GENERAL MOTORS COMPANY

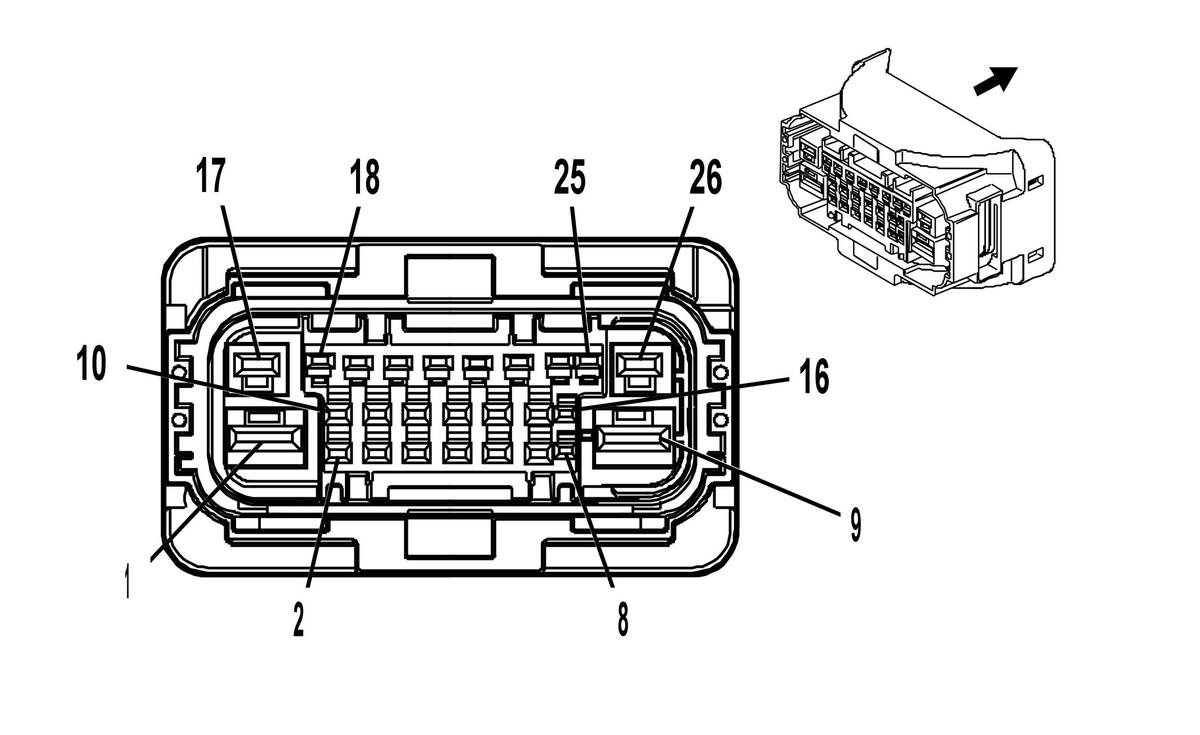

Connector Part Information

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool	Service Terminal	Tray Name	Core Crimp	Insulation Crimp
I	13584537	J-35616-14 (GN)	J-38125-557	Not Available	Not Available	Not Available	Not Available
II	19330700	J-35616-35 (VT)	J-38125-22	Not Available	Not Available	Not Available	Not Available
III	19369189	J-35616-40 (BU)	J-38125-22	Not Available	Not Available	Not Available	Not Available

Pin	Size	Color	Circuit	Function	Terminal Type ID	Option
1	4	RD/VT	542	Battery Positive Voltage	III	UGN-UKL
2	0.35	VT/YE	5985	Accessory Wakeup Serial Data	I	-
3 - 7	-	-	-	Not Occupied	-	-
8	0.35	BK/GY	3417	Brake Pedal Travel Sensor 1 Low Reference	I	-
9	4	BK	750	Ground	III	-
10	0.5	WH	2501	High Speed GMLAN Serial Data (-) 1	I	-
11	0.5	WH	2501	High Speed GMLAN Serial Data (-) 1	I	-
12 - 14	-	-	-	Not Occupied	-	-
15	0.5	WH	6106	High Speed GMLAN Serial Data (-) 2	I	-
16	0.5	WH	6106	High Speed GMLAN Serial Data (-) 2	I	UWG
17	1.5	RD/GN	3840	Battery Positive Voltage	II	UWG
18	0.5	BU	2500	High Speed GMLAN Serial Data (+) 1	I	-
19	0.5	BU	2500	High Speed GMLAN Serial Data (+) 1	I	-
20	0.5	BU/WH	3977	Accessory Wakeup Serial Data 2	I	-
21	0.5	VT/BK	1639	Run/Crank Ignition 1 Voltage	I	HD7
22	0.35	BU/YE	3334	Brake Pedal Travel Sensor 1 Signal	I	-
23	0.35	VT/BN	3333	Brake Pedal Travel Sensor 2 Signal	I	-
24	0.5	BU/YE	6105	High Speed GMLAN Serial Data (+) 2	I	-
25	0.5	BU/YE	6105	High Speed GMLAN Serial Data (+) 2	I	-
26	-	-	-	Not Occupied	-	-
