K186 Multifunction Energy Storage Capacitor Control Module X2 (UKL)
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: Battery
- OEM Connector: 13507683
- Service Connector: Service by Harness - See Part Catalog

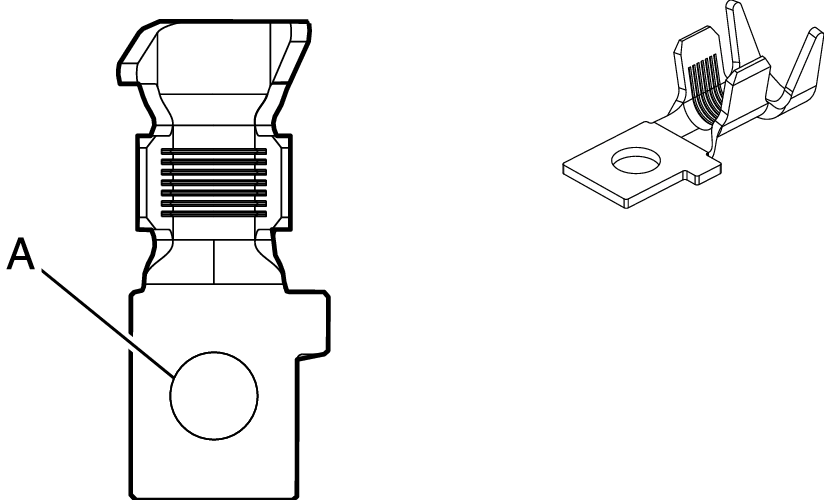

- Description: 1-Way Ring Terminal
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
Not Available |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| A |
- |
RD |
1942 |
Battery Positive Voltage |
I |
- |
