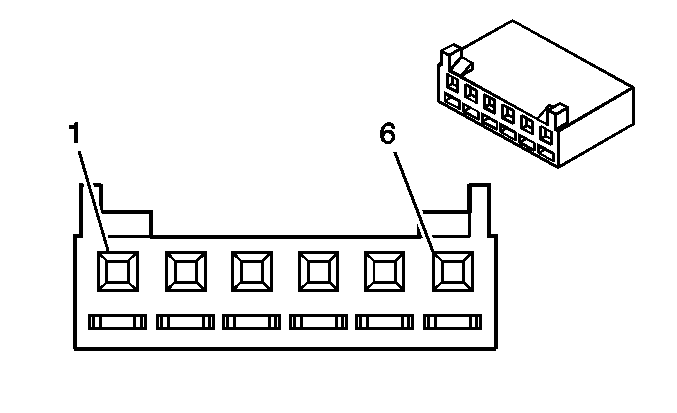

K32 Steering Wheel Heating Control Module X1 (KI3)
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: Steering Wheel
- OEM Connector: Not Available
- Service Connector: Service by Harness - See Part Catalog
- Description: 6-Way F
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
No Tool Required |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.35 |
OG |
5883 |
Heated Steering Wheel Switch Signal |
I |
- |
| 2 |
0.35 |
PK |
5884 |
Heated Steering Wheel Switch LED Control |
I |
- |
| 3 |
0.5 |
RD |
539 |
Run/Crank Ignition 1 Voltage |
I |
- |
| 4 |
0.5 |
BK |
1350 |
Ground |
I |
- |
| 5 |
0.5 |
BK |
1350 |
Ground |
I |
- |
| 6 |
- |
- |
- |
Not Occupied |
- |
- |
