K93 Active Steering Control Module X3 (UKL)
 Courtesy of GENERAL MOTORS COMPANY
|

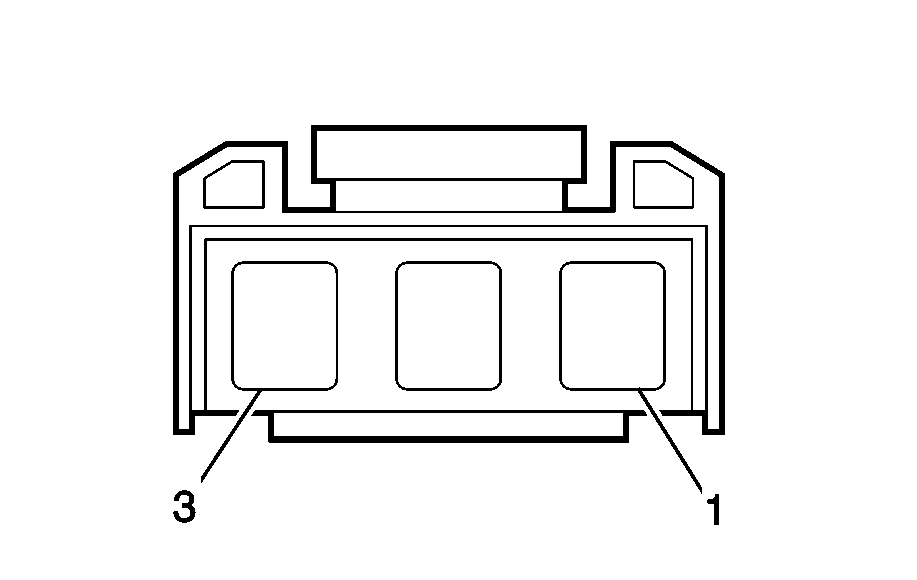

Connector Part Information
- Harness Type: Steering Wheel
- OEM Connector: PAP-03V-S
- Service Connector: Service by Harness - See Part Catalog
- Description: 3-Way F (WH)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
Not Available |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.35 |
RD/BN |
8240 |
Battery Positive Voltage |
I |
- |
| 2 |
0.35 |
GN/GY |
4627 |
Local Interconnect Network Serial Data Bus 27 |
I |
- |
| 3 |
0.35 |
BK |
1350 |
Ground |
I |
- |
