K93 Active Steering Control Module X5 (UKL)
 Courtesy of GENERAL MOTORS COMPANY
|

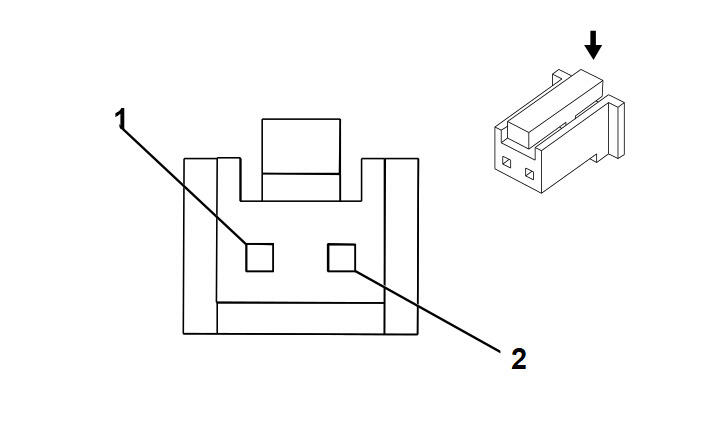

Connector Part Information
- Harness Type: Steering Wheel Pigtail
- OEM Connector: PAP-02V-S
- Service Connector: Service by Harness - See Part Catalog
- Description: 2-Way F 050 Series (WH)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
Not Available |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
- |
BK |
- |
- |
I |
- |
| 2 |
- |
WH |
- |
- |
I |
- |
