T1 Accessory DC/AC Power Inverter Module X2 (KI7)

Courtesy of GENERAL MOTORS COMPANY

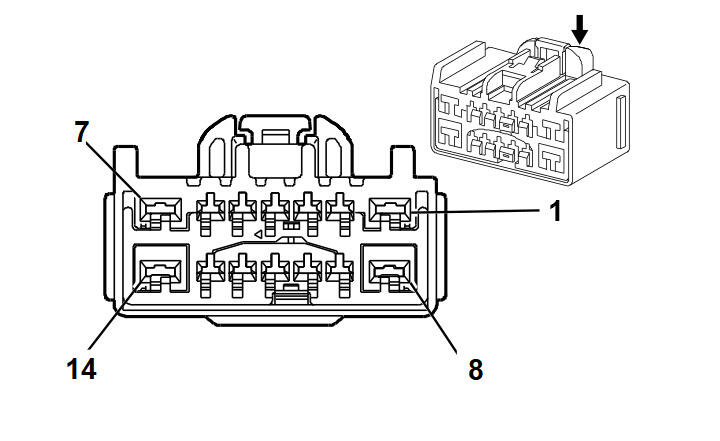

Connector Part Information Harness Type: Body OEM Connector: 15452737 Service Connector: 19167675 Description: 14-Way F 1.5, 2.8 Series (BK)

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool	Service Terminal	Tray Name	Core Crimp	Insulation Crimp
I	13575544	J-35616-35 (VT)	J-38125-12A	1326030-6	Lear 17	E	C
II	19301756	J-35616-14 (GN)	J-38125-217	Not Available	Not Available	Not Available	Not Available

Pin	Size	Color	Circuit	Function	Terminal Type ID	Option
1	0.75	BK	5683	120 V AC Phase A	I	-
2	-	-	-	Not Occupied	-	-
3	0.35	VT/YE	5985	Accessory Wakeup Serial Data	II	-
4	0.35	WH/GN	4628	DC/AC Inverter Relay Control	II	-
5	0.35	BU/WH	6807	DC To AC Inverter Control	II	-
6 - 7	-	-	-	Not Occupied	-	-
8	0.75	RD	5684	120 V AC Phase B	I	-
9	0.5 0.35	BARE BARE	514 514	Low Reference Low Reference	II II	KI6 KI7
10	0.35	GN	5060	Low Speed GMLAN Serial Data	II	-
11 - 14	-	-	-	Not Occupied	-	-
