T6 Power Inverter Module X7 (HP9)
 Courtesy of GENERAL MOTORS COMPANY
|

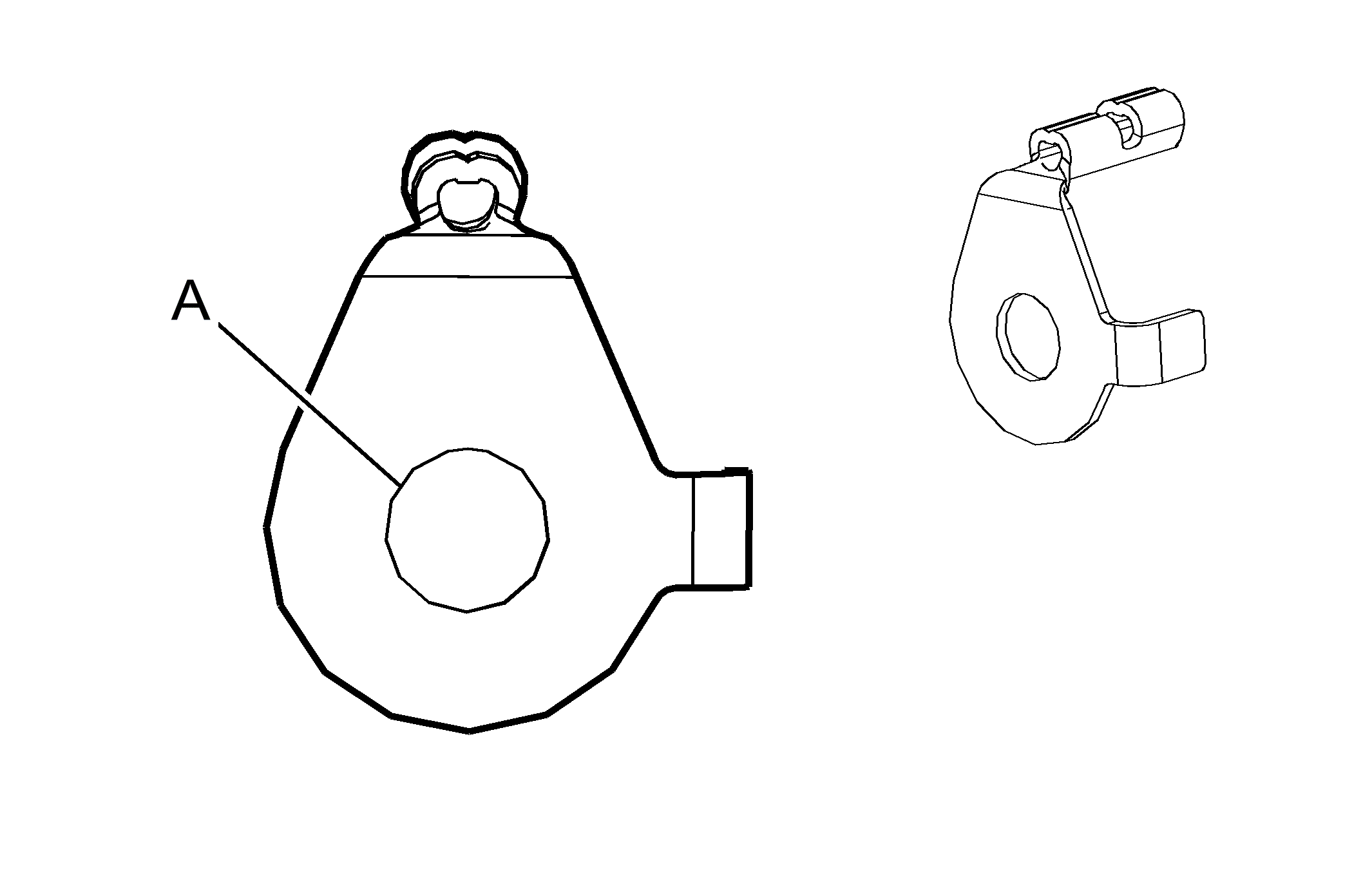

Connector Part Information
- Harness Type: Power Inverter Module Shield Ground
- OEM Connector: PE308562
- Service Connector: Service by Harness - See Part Catalog
- Description: 1-Way Ring Terminal
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
Not Available |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| A |
1.0 |
BK/WH |
651 |
Signal Ground |
I |
- |
