Control Valve Assembly

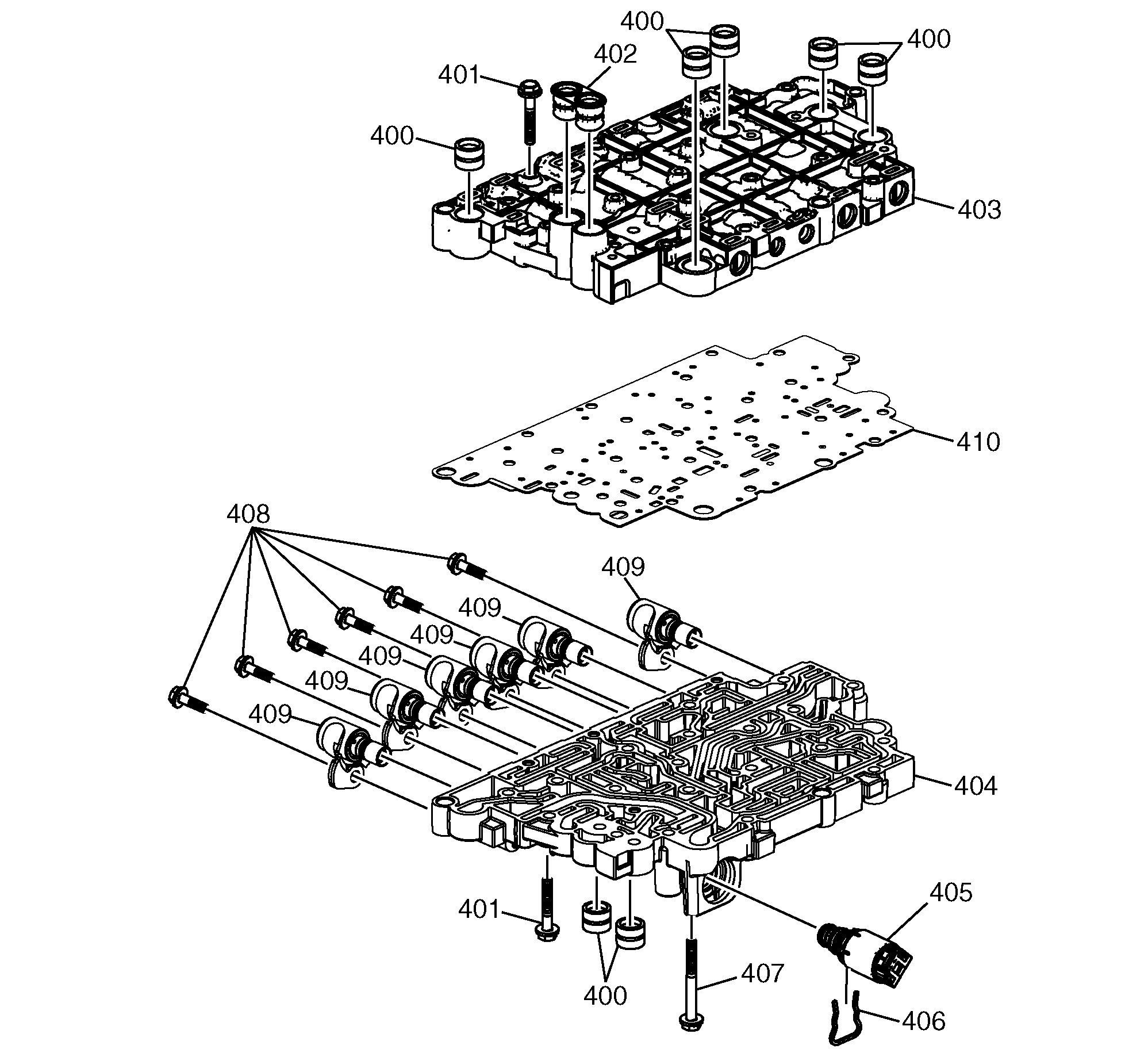

Fig 1: Identifying Control Valve Assembly Components
GM4420415Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
400 Automatic Transmission Hybrid Direct 2-3-4 Clutch Regulator Valve Seal [7x]
401 Valve Body Bolt [18x]
402 Automatic Transmission Hybrid Direct 2-3-4 Clutch Regulator Valve Seal
403 Control Valve Upper Body
404 Control Valve Solenoid Body
405 Clutch Pressure Control Solenoid Valve
406 Control Solenoid Valve Retainer
407 Control Valve Body Bolt [3x]
408 Shift Solenoid Valve Bolt [6x]
409 Shift Solenoid Valve [6x]
410 Control Valve Body Spacer Plate
