Body Control Module Replacement

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Instrument Panel Lower Trim Panel Insulator Replacement - Left Side

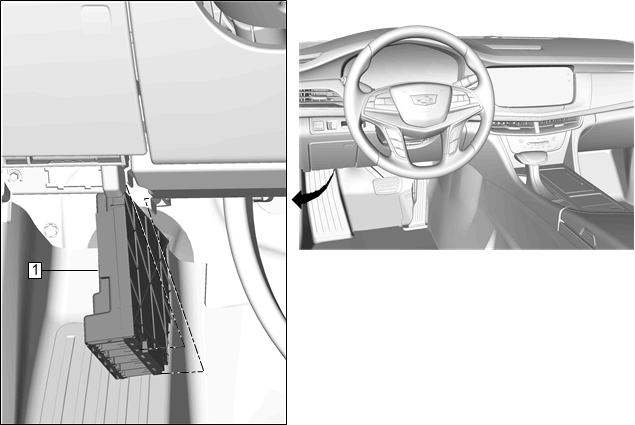

1	Body Control Module Procedure Disconnect the electrical connectors. Push tabs to release the body control module from the bracket. Control Module References for programming and setup information, if required.

Callout

Component Name

Preliminary Procedure
Instrument Panel Lower Trim Panel Insulator Replacement - Left Side

Body Control Module

Procedure

Disconnect the electrical connectors.
Push tabs to release the body control module from the bracket.
Control Module References for programming and setup information, if required.
