Collision Avoidance - Module Power, Ground, and Serial Data (UGN/UVZ)
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

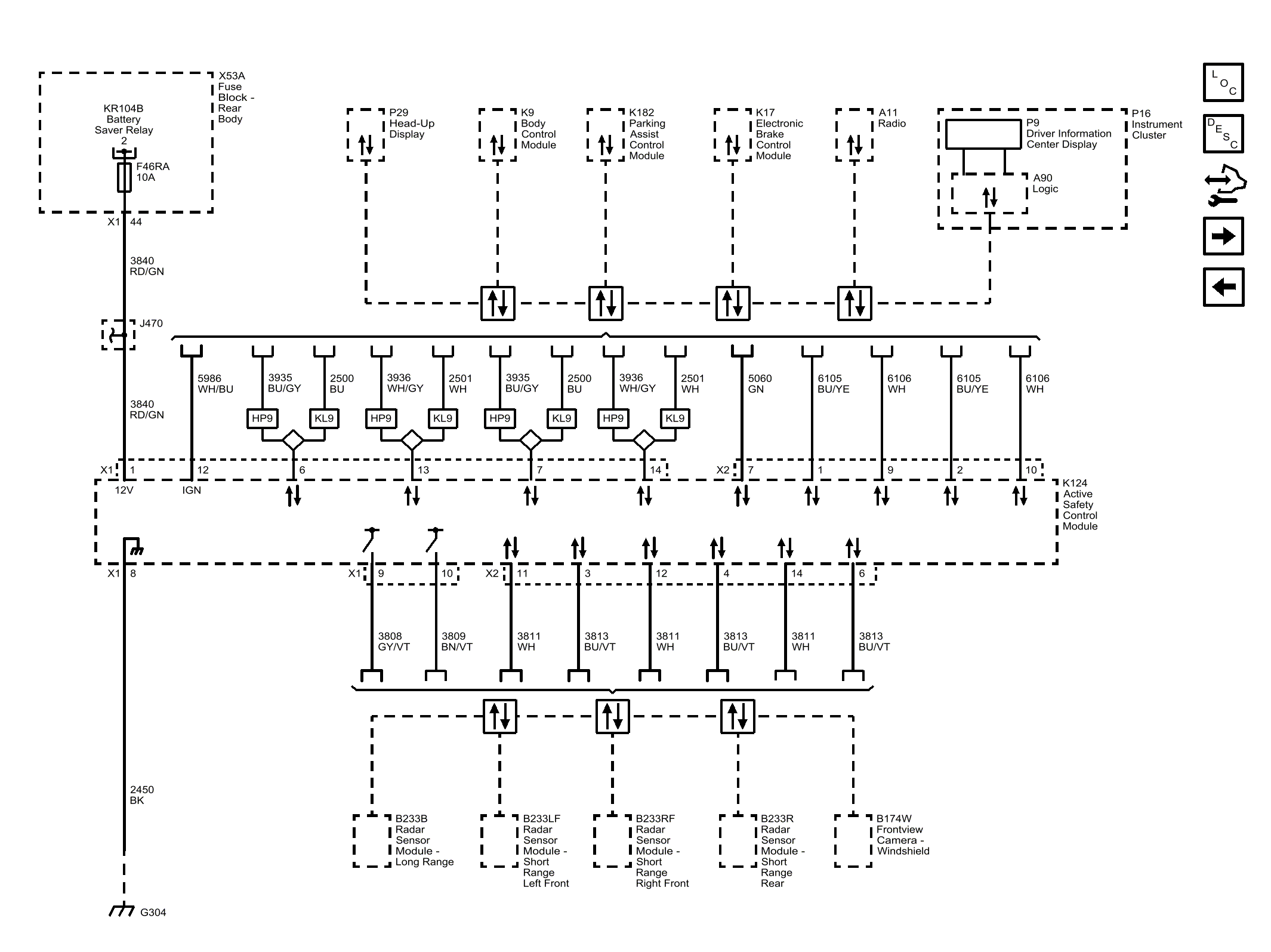

Collision Avoidance - Module Power, Ground, and Serial Data (UGN/UVZ)
