Lane Keep Assist and Forward Collision - Module Power, Ground, and Serial Data
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

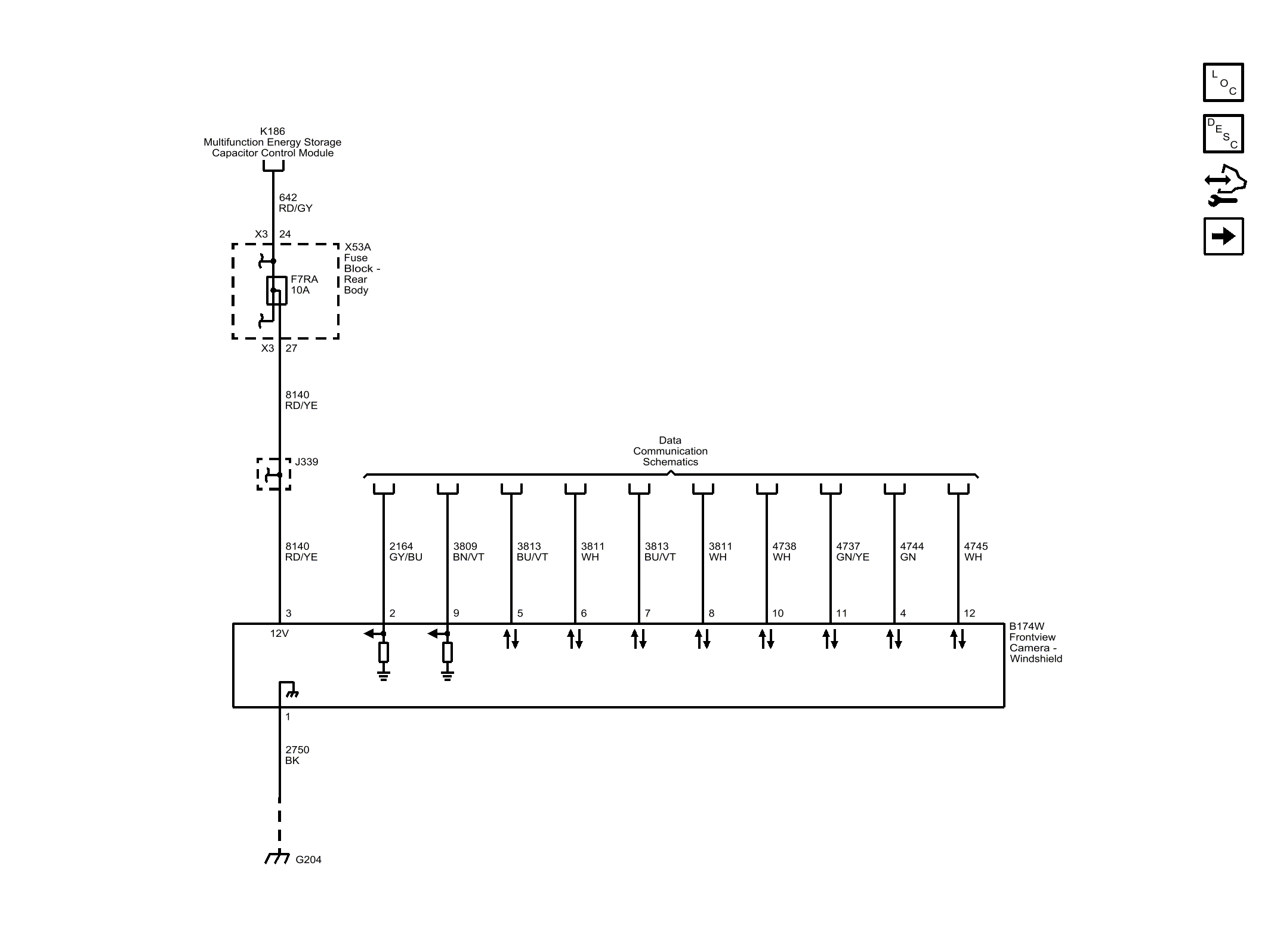

Lane Keep Assist and Forward Collision - Module Power, Ground, and Serial Data
