Removal Procedure
- Extend the steering column to the fully telescoped position.

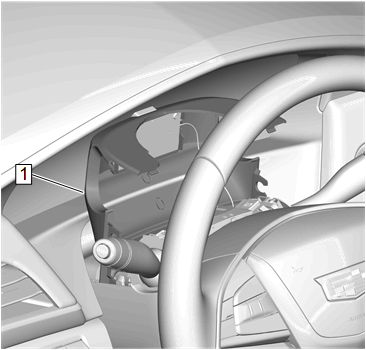

Release the retaining tabs on the steering column upper trim cover (1).
- Reposition the steering column upper trim cover to allow access to the camera and electrical connector.
- Disconnect the electrical connector.
Release the retaining tabs.
- Remove the driver monitoring system camera (1).
