Liftgate Close Switch Replacement

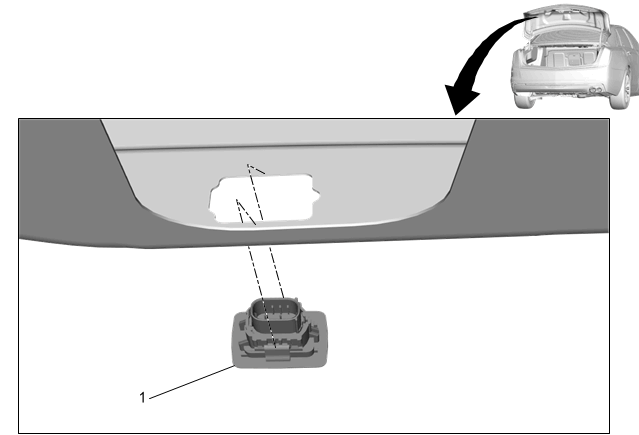

GM4256259Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Liftgate Close Switch

Procedure

  1. Disconnect the electrical connector.
  2. Use suitable tool to carefully release the switch retainers by applying outwards pressure.
