Liftgate Release Switch Replacement

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Rear Compartment Lid Inner Panel Trim Replacement

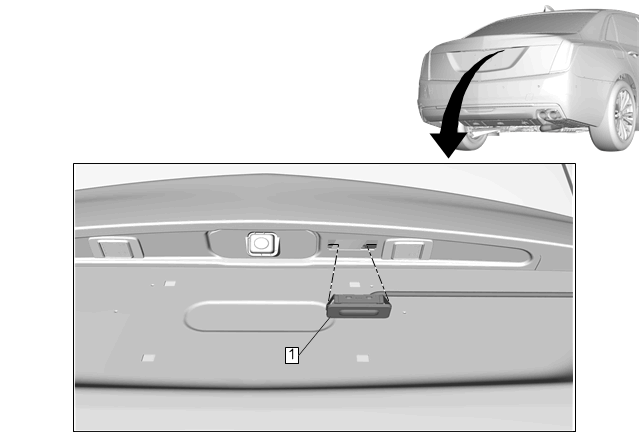

1	Liftgate Release Switch Procedure Depress the inner switch tab and rotate downward to remove the switch from the rear compartment lid. Disconnect the electrical connector.

Callout

Component Name

Liftgate Release Switch

Procedure

Depress the inner switch tab and rotate downward to remove the switch from the rear compartment lid.
Disconnect the electrical connector.
